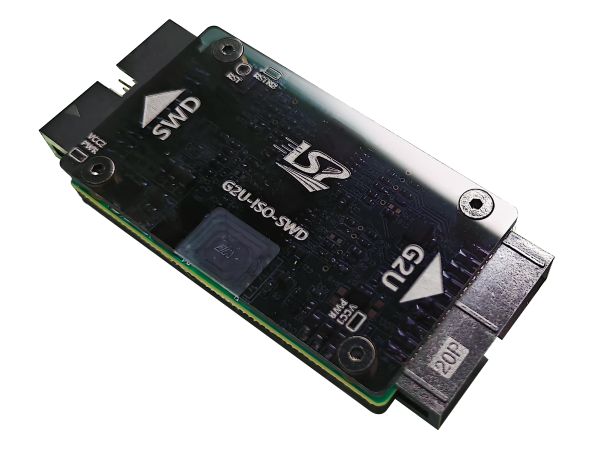

G2U-ISO-SWD Isolation Board

モデル名 : G2U-ISO-SWD
The G2U-ISO-SWD isolation board is designed to isolate the target board and the device when connecting via SWD using the SF600Plus-G2U, protecting both devices from voltage fluctuations or ESD damage.
USD$ 138

Description

The G2U-ISO-SWD isolation board is designed to isolate the target board and the device when connecting via SWD using the SF600Plus-G2U, protecting both devices from voltage fluctuations or ESD damage. The target end of this isolation board is standard 20 pins SWD port, allowing it to be used with other SWD devices as well.







SPEC

Item

Specification


DC voltage isolation 5000V
Target connectionStandard SWD 20-pin
Target VCC supported2.5V – 5V
SWD clock speedUp to 8 MHz
Status indicators3 LEDs: Source Power, Target Power, Target Reset
Control1 button for target reset
