The Intel ISP Adaptor B2 is used to connect SF600/SF600Plus/SF600Plus-G2 to Intel motherboard.
Mated with Intel 2x10 connector (Samtec: ASP-159358-03).
The cable length is around 8 cm; a header is added at the end.
※ This adaptor does not work with Quad IO. Please choose "ISP-ADP-intel-C2" for Quad IO.
Table 1: SF600/SF600Plus/SF600Plus-G2 ISP Header Pin Out (2x10)
1 | Vpp | CS2 | 2 |
3 | CS1 | VCC | 4 |
5 | MISO / DQ1 | HOLD / DQ3 | 6 |
7 | WP / DQ2 | CLK | 8 |
9 | GND | MOSI / DQ0 | 10 |
11 | NC | Reset / IO3 | 12 |
13 | NC | NC | 14 |
15 | NC | NC | 16 |
17 | NC | NC | 18 |
19 | GPIO1 | GPIO2 | 20 |

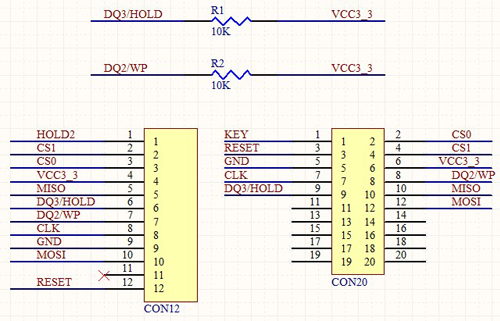

Table 2: Intel ISP Adaptor B Pin Out (2x10)
1 | KEY | CS0 | 2 |
3 | RESET | CS1 | 4 |
5 | GND | VCC | 6 |
7 | CLK | DQ2 / WP | 8 |
9 | DQ3/HOLD | MISO | 10 |
11 | x | MOSI | 12 |
13 | x | x | 14 |
15 | x | x | 16 |
17 | x | x | 18 |
19 | x | x | 20 |
Table 3: Some signals have naming variations between SF600/SF600Plus/SF600Plus-G2 pin out and Intel Adaptor pin out.
The following is the matching table.
SF600/SF600Plus/SF600Plus-G2 Connector | Intel Adaptor | ||
Pin | Signal | Pin | Signal |
2 | CS2 | 4 | CS1 |
3 | CS1 | 2 | CS0 |
4 | VCC | 6 | VCC |
