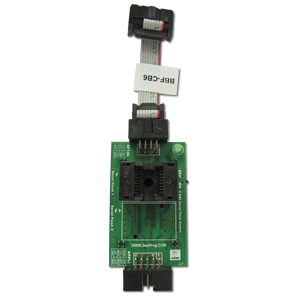

The Backup Boot Flash is an ingenious tool created by DediProg to force the application controller to work automatically on the backup SPI Flash inserted in our tool SO16W socket and no more on the Main Serial Flash soldered on board. At the connection on board, the BBF tool will disable automatically the Main Serial Flash that does not need to be unsoldered.
The BBF tool can be connected to the application with:
- Our BBF cable (included) to the application 2X5 2.54mm pin header.
- Our BBF Test Clip-SO16W (to be purchased separately) to be connected on the Main Serial flash package soldered on board (no need of connector).
The Serial Flash can be easily changed manually thanks to the SO16W socket or even updated by connecting our SF100 programmer. The SF100 programmer is completely transparent for the application and will offer to developer high flexibility for code trials or update. The BBF is frequently used to boot failing computers and use the Flash Utility tools to update the corrupted Bios memory.
Please note that the BBF modules only support 3.3V/2.5V IC.
For offline programming demand only, it is recommended to use socket adaptor.
- Compatible with most of the applications (no hardware modification needed)
- Disable automatically the two Main Serial Flash soldered on board (No need to unsolder it)
- Main Serial Flash can be enabled again with a switch on the BBF tool
- Backup Serial Flash can be easily updated by connecting the SF100 programmer
Application Hardware Requirement
- Hold Pin pulled high through a resistor (schematics available under request).
- Email to firstname.lastname@example.org for on-board reference schematic request.
- Download SF100 application note for further information [ AN0103 and AN0106 ].
- Backup Boot Flash Module with SO16W socket (BBF-16W) x 1
- BBF cable with 2.54mm pitch 2x5 female header (BBF-CB) x 1
- SO16 Connection Adaptor for BBF(BBF-CON-16) x 1, which also includes:
- 1.27mm pitch 2x8 SMT male header (10.3mm) x 2
- 1.27mm 2x8 cable with female header (CB-28-127) x 1
- SF100 Programmer to update the Backup Flash
- BBF Testclip-SO16W(BBF-TC-16)
