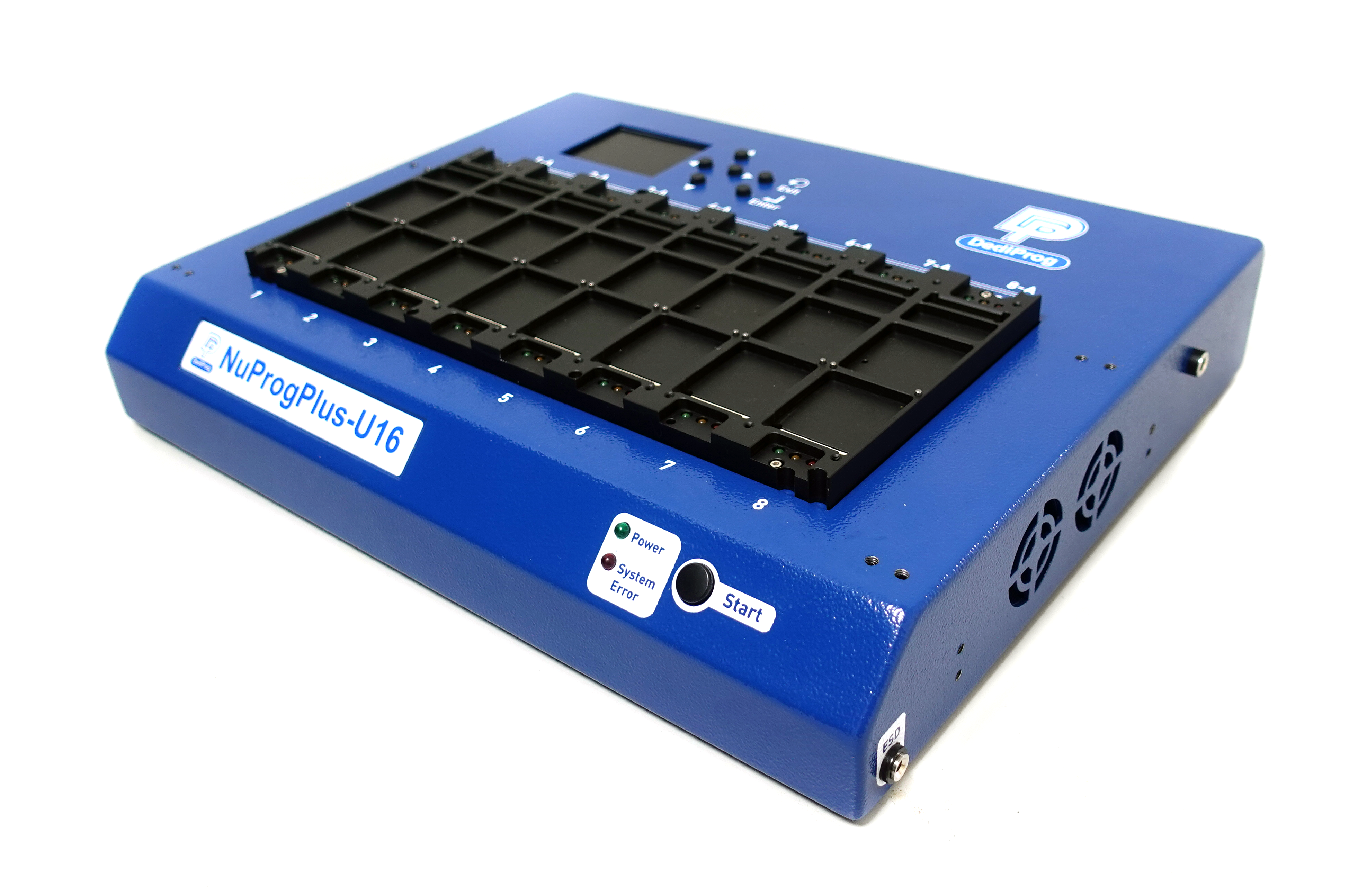

NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket)

Model Name : NuProgPlus-U16
USB3.1 powerful universal programmer, support EEPROM, Flash, MCU, eMMC, and UFS
This item is unavailable for online purchase.

Feature

NuProgPlus Series is the powerful universal programmer which is capable of supporting EEPROM, Flash, MCU, eMMC, and UFS devices programming. It can also support eMMC and UFS device duplicating. With the all newly designed FPGA kernel architecture, total sockets for NuProgPlus-U16 can be extended up to 16 SPI Flash programming or 16 eMMC/UFS IC duplicating in parallel. NuProgPlus-U16 is the manual operation model of NuProgPlus Series. With the project file(s), the user can use the LCD and keypad to operate the programming or duplicating without PC. Hand Press Fixture is an option accessory to help the user pick and place the IC easily.



Highlights

  • All newly designed FPGA kernel architecture supplies ultra high speed programming performance
    • Support both Copy Mode and Program Mode
  • Flexible to support various programmable IC/device in the market
    • Support various storage IC: UFS, eMMC, SPI NOR, SPI NAND, Parallel NOR, Parallel NAND, and EEPROM
    • Support MCU, CPLD, and FPGA
    • Support various IC package: CSP, BGA, QFN, QFP, SOP, TSOP, SSOP, PLCC, DIP, etc.
    • Support various file format: Binary(bin/rom), Intel Hex (h16/h20/hex), Motorola S19 (mhx/mot/s19/srec) and the specific file format of MCU IC
  • Support up to 8 programming sockets (Can expand to 16 sockets for SPI Flash/UFS/eMMC)
  • Duplicating for UFS/eMMC (Master IC/device is required as the data source)
    • Duplicate UFS data, LUN configuration, and Descriptors/Attributes/Flags. (Not support RPMB duplicating)
    • Duplicate eMMC boot area, GPP, user area, and ExtCSD.  (Not support RPMB duplicating)
  • Support NAND Flash Skip Bad Block management and partition file (CSV/DEF/MBN)
  • Support project file for production programming demand
    • Integrate high speed storage to store project file or project folder for more stable and faster transmission
    • Project download speed up to 100 MB/s
    • Press Start button to start programmng after loading the project file, so operator will not load the wrong image file or select the incorrect IC part number
  • Three kinds of start modes for productivity improvement
    • Manual Mode
    • Auto Detection Mode
    • Handler Mode
  • PC can link to multiple NuProgPlus-U16 and program IC at the same time
  • Stand-alone function allows user to program without a computer and only need to operate through LCD keypad

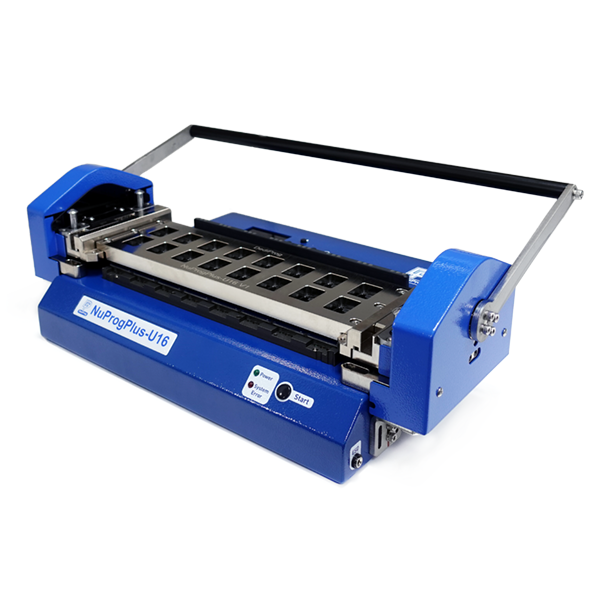

NuProgPlus-U16 with Hand Press Fixture (Option) that can open 8 sockets at once.

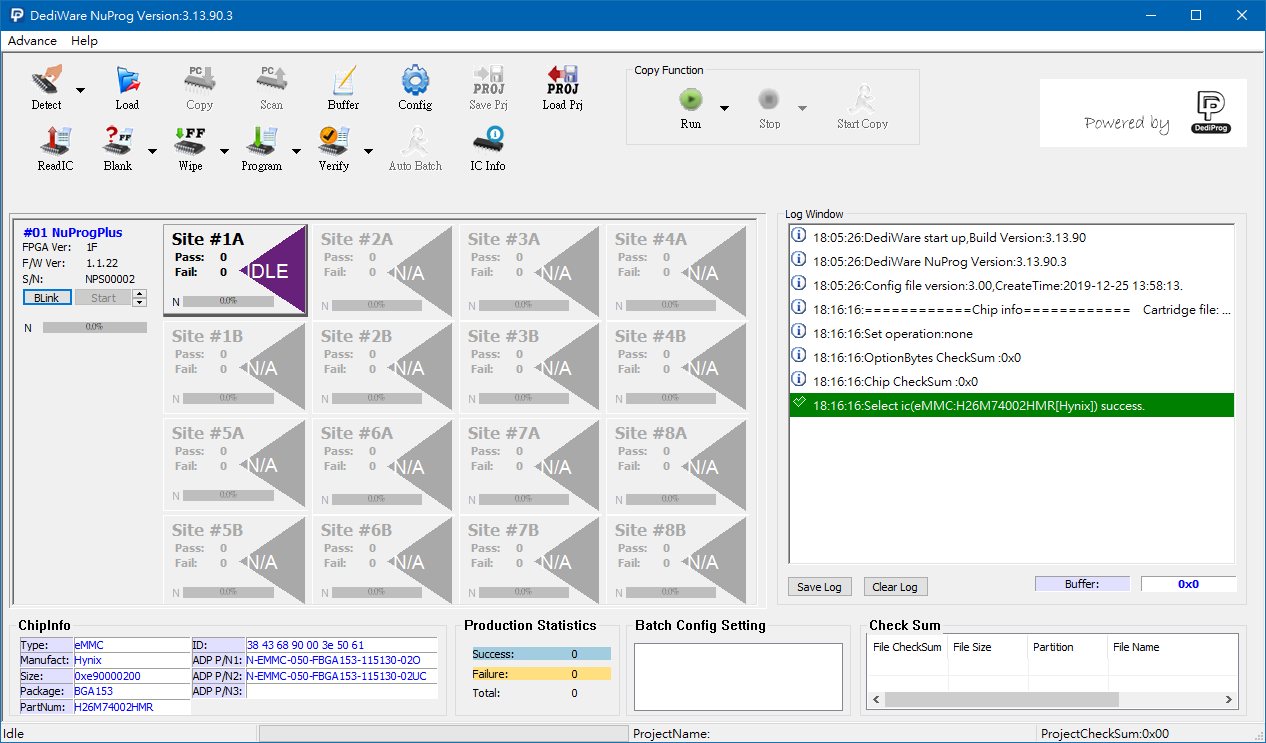

eMMC/UFS programming and duplicating

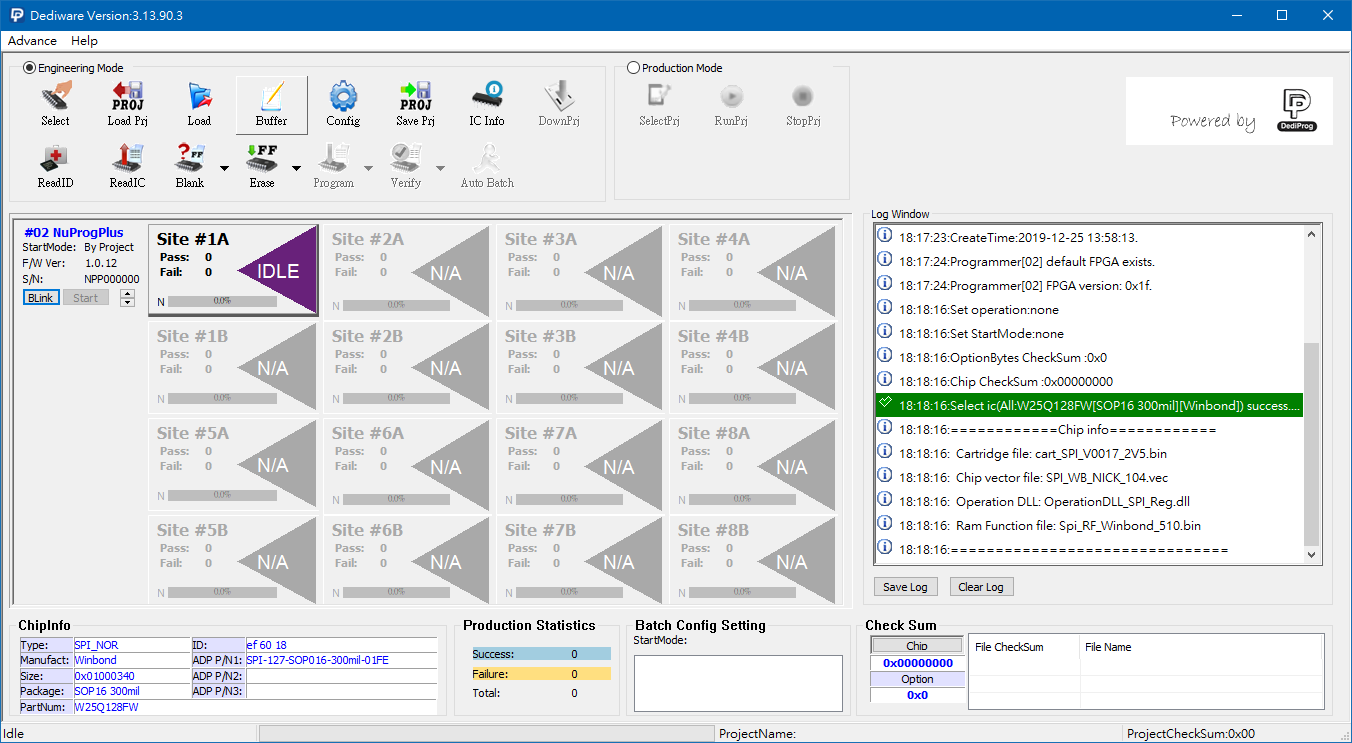

MCU/Flash programming
Standard Package
  • NuProgPlus-U16 x 1
  • USB 3.0 Cable x 1
  • Power Adaptor x 1
  • 256G SSD Inside



Optional Purchase
  • Socket Adaptor
  • Upgrading inside SSD to 512G

Related Accessories

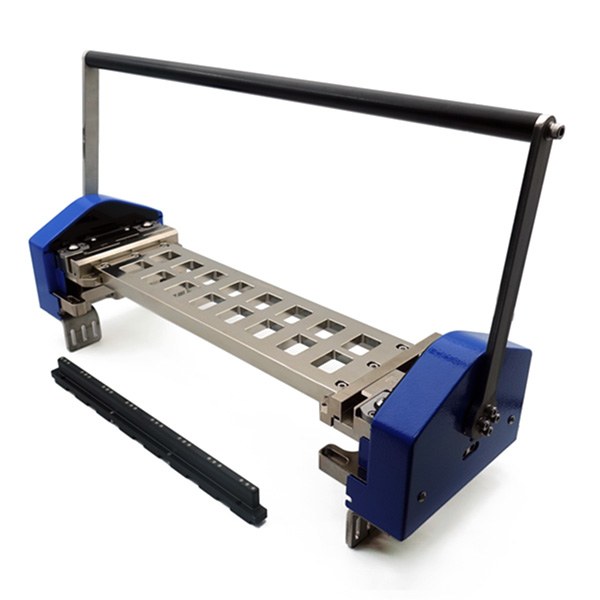

Hand Press Fixture For NuProgPlus
Hand Press Fixture For NuProgPlus
This item is unavailable for online purchase.
Product File Type File Description Version Download File size Last Update
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Software USB Driver
- Update Digital Signature
New 5.65MB 2023-03-30 17:44:03
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Software DediWare Software (This version is for StarProg Series, ProgMaster Series, K110, NuProg-E2 and NuProgPlus Series)
[Modified Content]
1. Fix save project issue. if using IAP file and setting option bytes., it will hang up during production mode.
2. Fix handler software do not receive "initing" status.

[New Feature]
1. Add Option size on general GUI


[Remark]
Firmware Support
The firmware needs to be updated as below
NPPEU: 1.9.8 or above
NPPG: 1.3.2 or above
NuProgPlus CY3: 1.0.13
NuProgPlus FPGA 38
3.17.15.2 351.81MB 2023-03-07 16:45:39
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Software DediWare Software (This version is for StarProg Series, ProgMaster Series, K110, NuProg-E2, and NuProgPlus Series)
[Modified Content]
1. Add MT256GAXAU4U22[BGA254]
2. Fix DediWare Selector load prj issue for oprj


[Remark]
Firmware Support
The firmware needs to be updated as below
NPPEU: 1.9.8 or above
NPPG: 1.3.2 or above
NuProgPlus CY3: 1.0.13
NuProgPlus FPGA 38
3.17.9.19 238.94MB 2023-03-07 16:44:07
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Manual Dediware Software User Manual for NAND Flash 2.6 2.48MB 2023-05-09 16:36:55
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Manual Dediware-Checksum Calculation Methods 583.87KB 2023-04-24 14:40:45
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Manual DediWare Software User Manual 3.0 4.44MB 2022-05-11 10:10:00
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Manual NuProgPlus Series Universal Gang Programmer and Duplicator User Manual V1.2 3.14MB 2022-02-15 11:27:04
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Manual Application Note-How to use Unique key on dediware 2.2 2.40MB 2019-08-19 14:43:31
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Manual Dediware Software User Manual For SPI NOR Flash Option Bytes 1.0 1.81MB 2017-05-08 17:17:43
NuProgPlus-U16 Universal Gang Programmer and Duplicator (8 Sites dual socket) Flyer NuProgPlus Series Universal Gang Programmer and Duplicator Flyer 1.10MB 2023-08-25 14:38:27
