PCR Clamshell Socket

Model Name : PCR Clamshell Socket
The PCR Clamshell Socket utilizes precision injection molding technology combined with high-performance conductive rubber (PCR), providing a cost-effective and high-performance testing solution.
Multiple specification and models available.







Features

The PCR Clamshell Socket utilizes precision injection molding technology combined with high-performance conductive rubber (PCR), providing a cost-effective and high-performance testing solution. Its excellent high bandwidth and low resistance characteristics make it especially suitable for engineering testing, programming, chip analysis, and other applications.

DediProg has launched a complete set of product specifications covering the most common IC package sizes in the market, fully meeting various testing needs.




For other specifications or custom requirements, please contact us at sales@dediprog.com.






Highlights

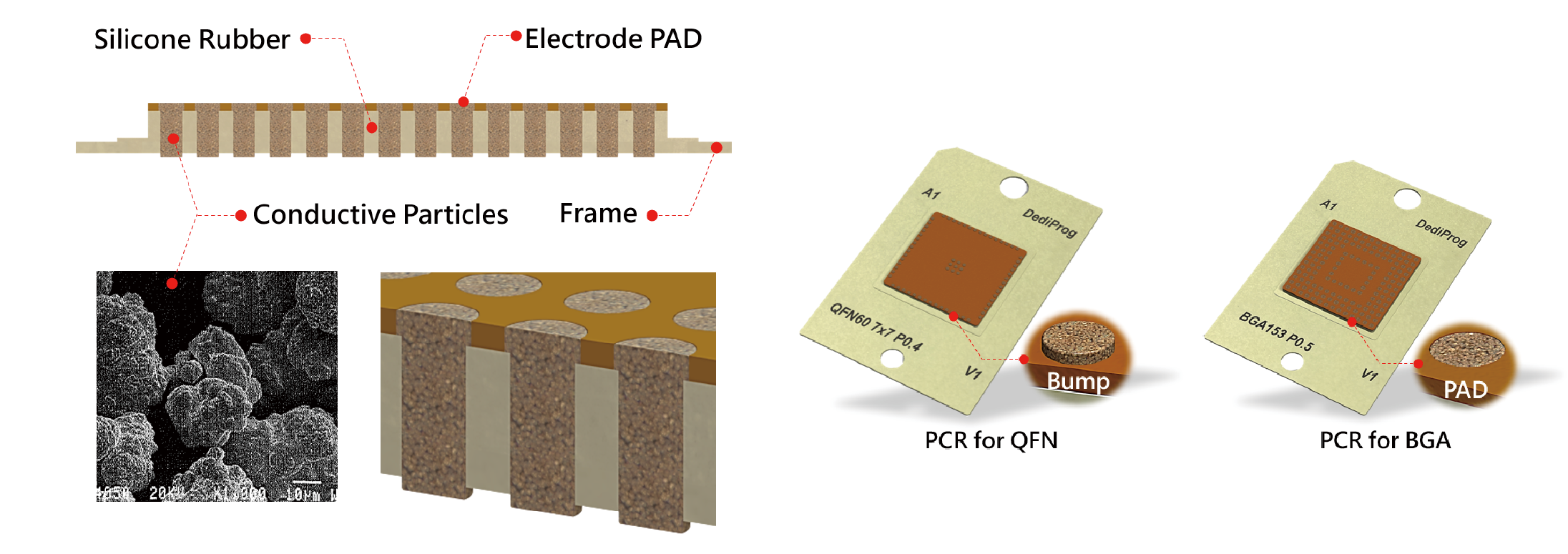

DediProg's PCR Clamshell Socket features our self-developed PCR, which provides several key advantages:





  1. High Transmission Rate and Low Resistance
    The PCR offers excellent electrical properties, including high bandwidth, high speed, and low resistance performance, which is particularly suitable for high-precision testing environments.

  2. Impression-Free Contact Design
    The PCR prevents probe marks on IC pads or bumps, further protecting the integrity and functionality of the components.

  3. Easy Replacement & Enhanced Efficiency
    With a simple and intuitive replacement process, the PCR simplifies maintenance while significantly reducing downtime risk and overall costs.






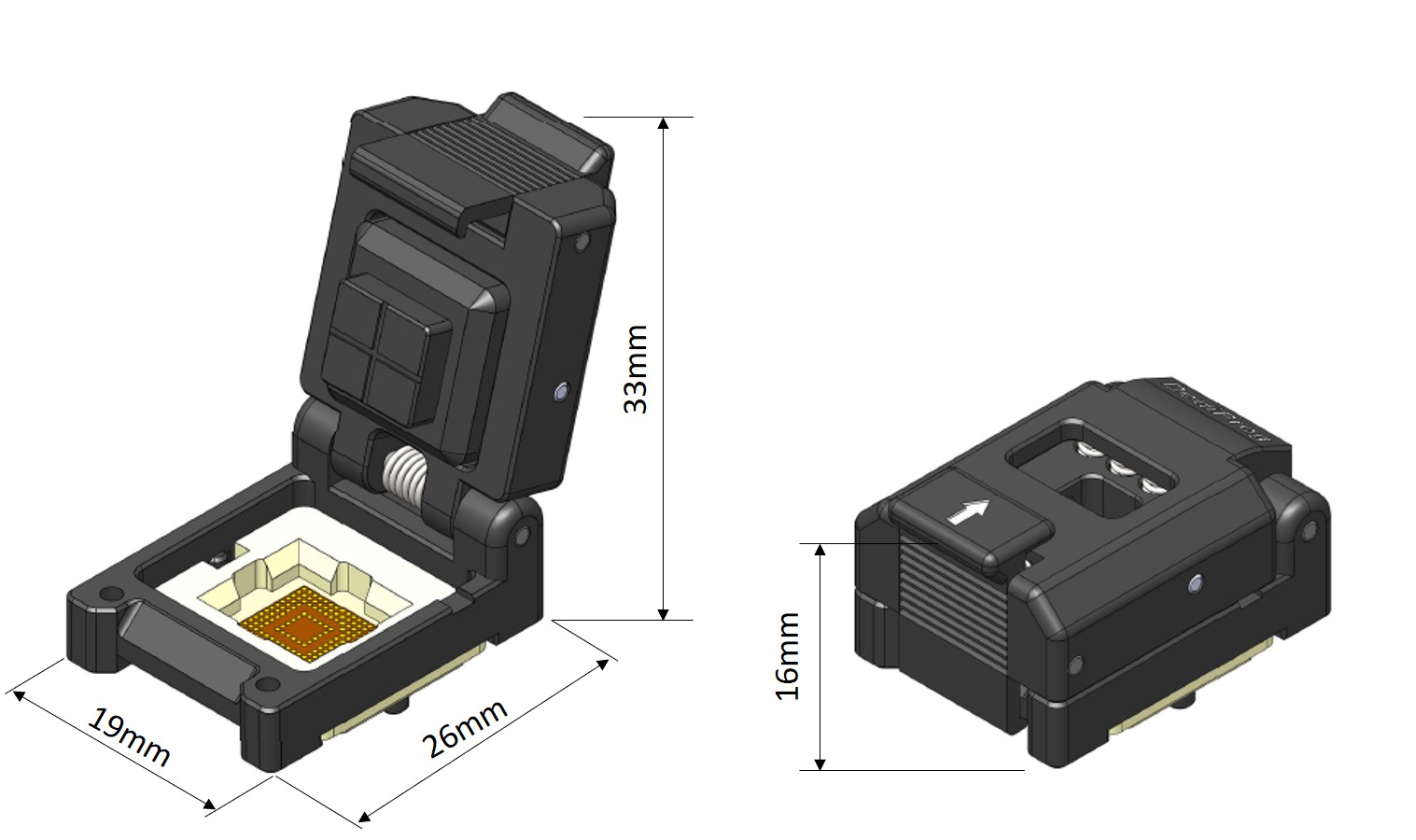

Specs

PCR Clamshell Socket

Supported IC PackageBGA, QFN
Supported IC Size2x2mm ~13x13mm
Pin Count2 ~ 500
Pitch0.35mm ~ 2.54mm
Bandwidth-1dB @ 60GHz
Operating Temp.  -55℃ ~ 135℃

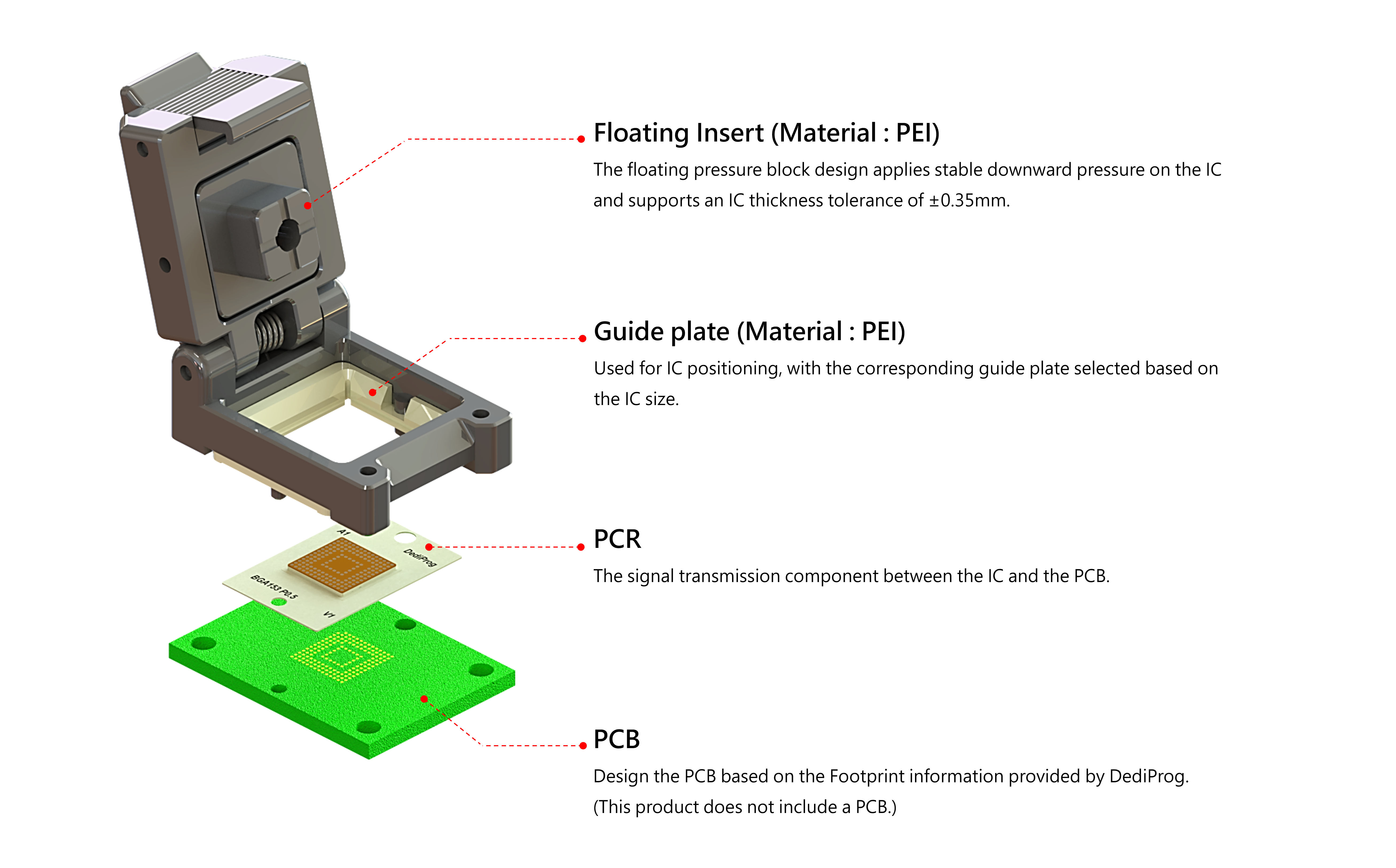

Structure

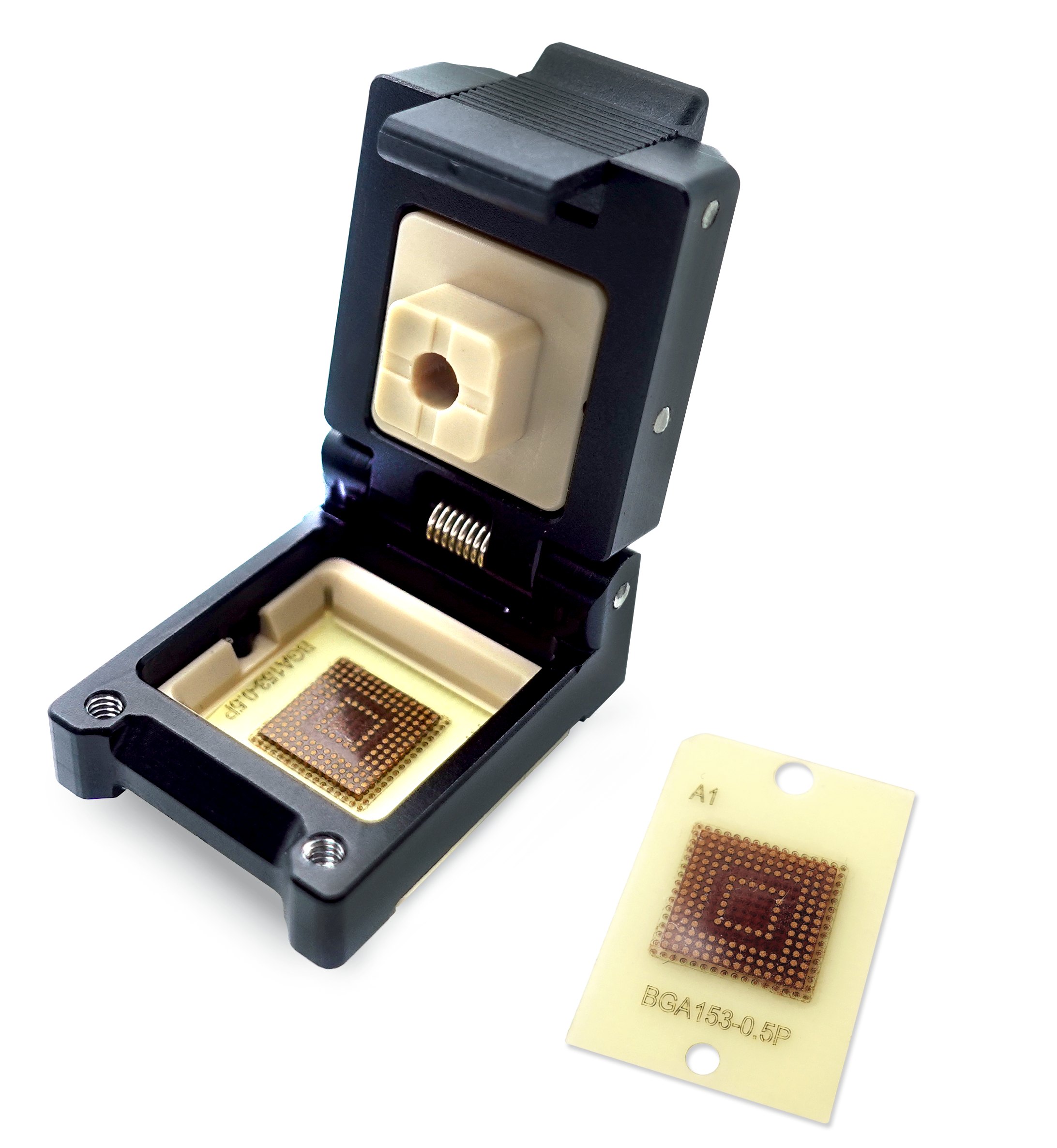

PCR on Socket

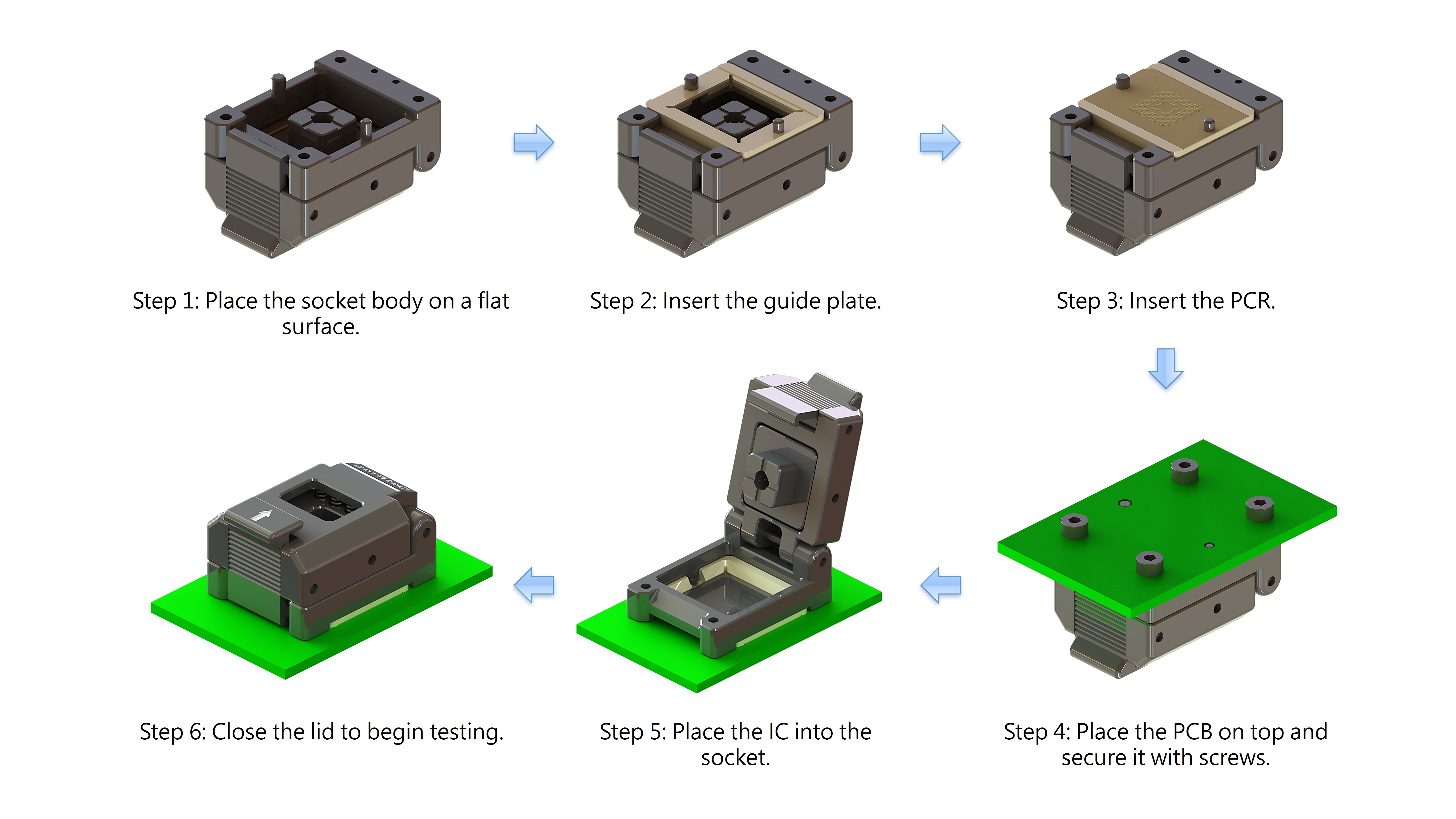

Installation Procedure
