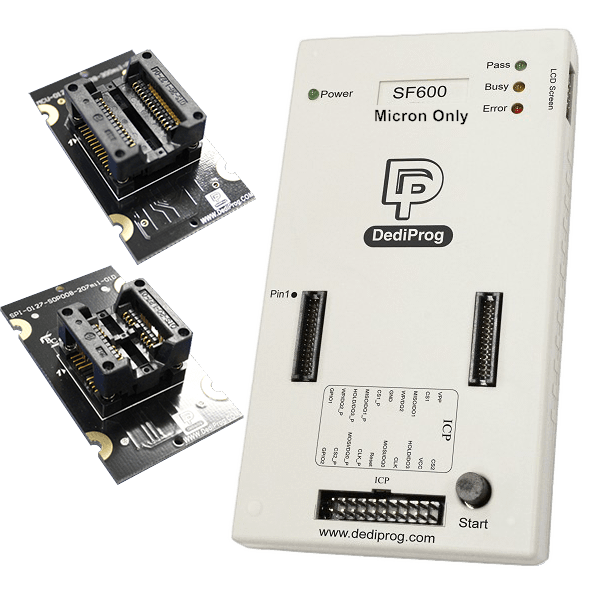

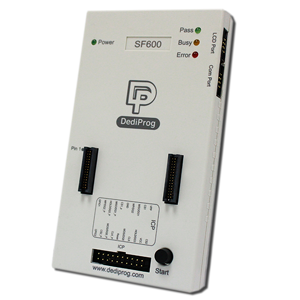

SF600 SPI NOR Flash Programmer

Model Name : SF600
The SF600 is a high speed "in System Programming" programmer to update the SPI Flash soldered on board or in the socket adaptor.
This item is unavailable for online purchase.

End of Life Notification:

SF600 is directly replaced with SF600Plus-G2. The new generation SF600Plus-G2 is fully compatible with SF600 in hardware and software reliability and quality. The SF600Plus-G2 is more flexible to fulfill the Flash device's development needs.

View SF600Plus-G2




Feature

The SF600 is a high-speed "in System Programming" programmer to update the SPI Flash soldered on board (In-Circuit Programming) or in the socket adaptor (Offline programming). The programmer is easily controlled by the computer DediProg Software through the USB bus offering a friendly interface and powerful features to users.


SF600 combines the advantages of SF100 with additional improvements: High-speed USB and higher SPI performances.



Highlights

  • USB High speed and high SPI performance, support up to 2Gb SPI Flash
  • In circuit Programming: Program on-board SPI Flash
  • Offline Programming: Program SPI Flash in the socket
  • ISP Port supports 2 CS pins to program two Serial Flash memories
  • Start button feature: Able to Batch in the USB mode
  • Signal conflict protections
  • Multi-Programmers Capability through USB
  • Support 1.8V low voltage IC
  • Support Windows 2003 and above
  • Support both 32 and 64-bit OS



High performance (25MHz, Single IO)

USB Mode Reference IC Density  (Program + Verify)
Memory size W25X80VSSIG 8Mb 9s
W25Q16VSSIG 16Mb 11.6s
W25Q32VSSIG 32Mb 12.6s
W25Q64FVSSIG 64Mb 31s
W25Q128BVFIG 128Mb 61.7s
W25Q256FVFIG 256Mb 89.2s
S25FL512SAGMFI011 512Mb 147.4s



*Please note the programming and verify time will depend on different IC type; please refer to the IC specification before programming.



Hardware

SF600 is designed with ISP header, through an appropriate connector, users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status. Please refer to Table 1 for the SF600 2x10 header pin out. DediProg also provides the SF600 ISP Cable which is used to connect the SF600 programmer to the 2X6 2.54mm ISP Pin Header on board, please refer to Table 2 for the SF600 ISP Cable 2x6 pin out.


Table 1: SF600 ISP Header Pin Out (2x10)

1 Vpp CS2 2
3 CS1 Vcc 4
5 MISO/DQ1 Hold/DQ3 6
7 Wp/DQ2 CLK 8
9 GND MOSI/DQ0 10
11 NC Reset/IO3 12
13 NC NC 14
15 NC NC 16
17 NC NC 18
19 GPIO1 GPIO2 20



Table 2: ISP Cable Connector Pin Out (2x6)

1 Vpp CS2 2
3 CS1 Vcc 4
5 MISO/DQ1 Hold/DQ3 6
7 Wp/DQ2 CLK 8
9 GND MOSI/DQ0 10
11 NC Reset 12



The SF600 USB software tool chain offers high flexibility and fits the different and highest requirements:

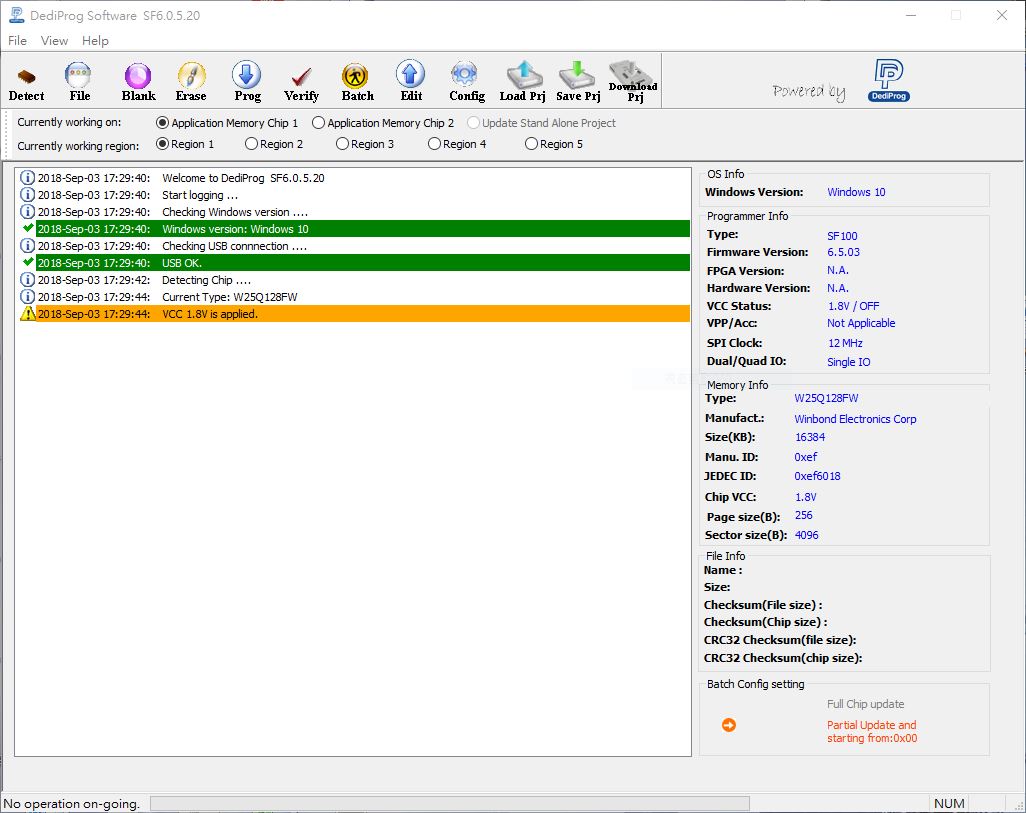

Engineering Mode
For engineers and expert to access advanced features for development, repairing etc.

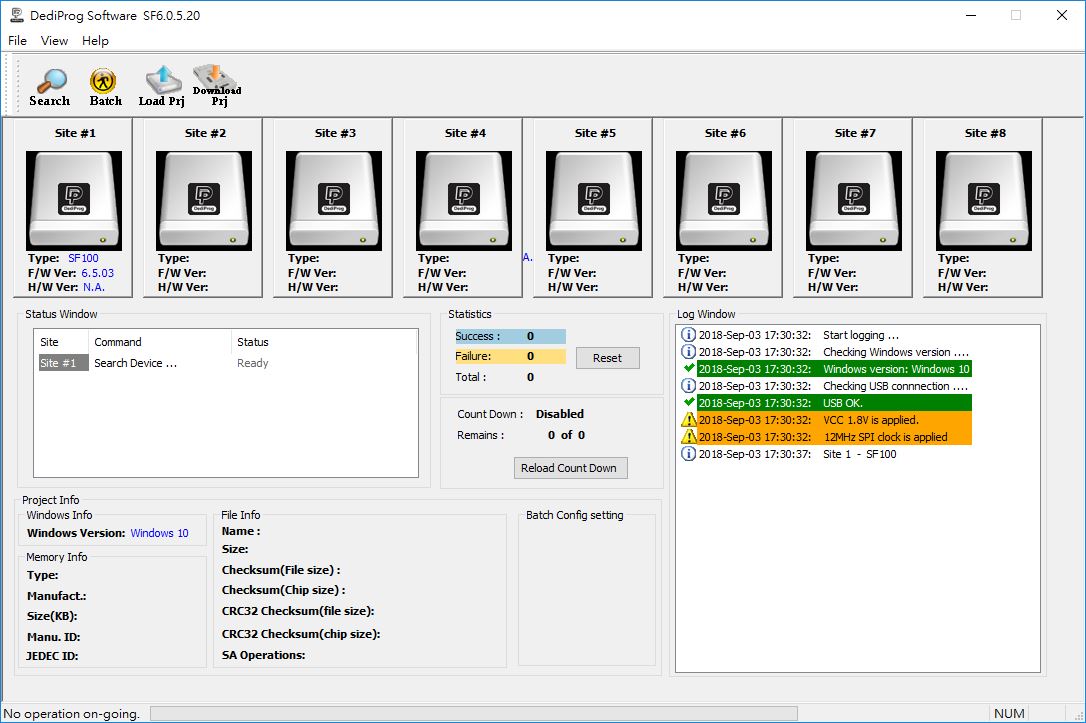

Production Mode
For operators in production to control multiple programmers and improve the throughput.

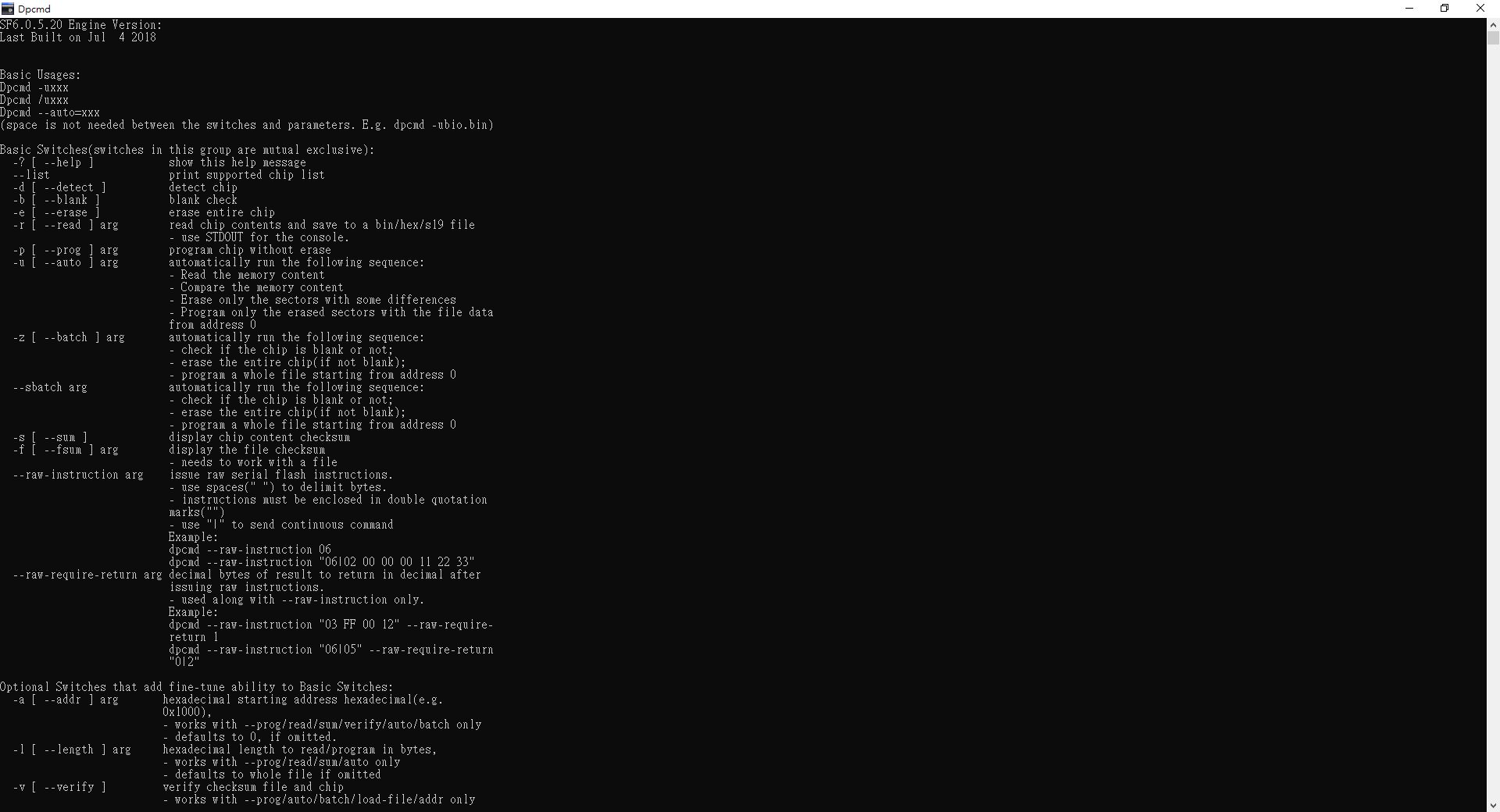

Command Line
Customer software can control multiple SF600 programmers by command line interface.

Hardware Requirement for ISP

To have a clear understanding on the different ISP or backup boot methods and different reference schematics, please download our dedicated application notes: AN0103 and AN0106 and In-System Programming (ISP) for Serial NOR Flash



Standard Package
  • SF600 Programmer x 1
  • USB Cable x 1
  • ISP Cable (ISP-600-CB1-G) x 1
  • SF100 2.54mm 2*4 ISP Cable (ISP1-CB) x 1
  • SF600 Universal Adaptor (ADP-SF600-TO-SF100) x 1



Optional Purchase
  • Backup Boot Flash Module-8N
  • Backup Boot Flash Module-8W
  • Backup Boot Flash Module-D8W
  • Backup Boot Flash Module-DIP
  • Backup Boot Flash Module-16W
  • Backup Boot Flash Module QUAD-8W

Related Accessories

10-Pin Split Cable With 2x10 Connector
10-Pin Split Cable With 2x10 Connector
This item is unavailable for online purchase.
2.54mm 2x10 To 1.27mm 2x10 Adaptor With Cable
2.54mm 2x10 To 1.27mm 2x10 Adaptor With Cable
This item is unavailable for online purchase.
Intel ISP Adaptor-B (mated with SF600 Series)
Intel ISP Adaptor-B (mated with SF600 Series)
This item is unavailable for online purchase.
ISP Testclip (SO8) (Compatible with SF100)
ISP Testclip (SO8) (Compatible with SF100)
This item is unavailable for online purchase.
NuProgPlus Socket Bottom Board
NuProgPlus Socket Bottom Board
This item is unavailable for online purchase.
SF100 Universal Adaptor
SF100 Universal Adaptor
This item is unavailable for online purchase.
SF600 ISP Cable
SF600 ISP Cable
This item is unavailable for online purchase.
SF600-ISO-BOARD-2
SF600-ISO-BOARD-2
This item is unavailable for online purchase.
SO16W Testclip With 2x10 Connector
SO16W Testclip With 2x10 Connector
This item is unavailable for online purchase.
SO8 Testclip With 2x10 Connector
SO8 Testclip With 2x10 Connector
This item is unavailable for online purchase.
SPI NOR Flash Development Kit (SF600Plus-G2)
SPI NOR Flash Development Kit (SF600Plus-G2)
This item is unavailable for online purchase.
Universal Adaptor With 2.54mm 2x4 ISP Cable
Universal Adaptor With 2.54mm 2x4 ISP Cable
This item is unavailable for online purchase.
Product File Type File Description Version Download File size Last Update
SF600 SPI NOR Flash Programmer Software [Linux software]
Linux software for SF100, SF600, SF600Plus, SF600Plus-G2, and SF700, please visit GitHub at https://github.com/DediProgSW/SF100Linux
New 132.00B 2023-04-25 15:46:20
SF600 SPI NOR Flash Programmer Software USB Driver
- Update Digital Signature
5.65MB 2023-03-30 17:44:03
SF600 SPI NOR Flash Programmer Software SF Software
[Modified Content]
1. Add IC Part Numbers
2. Fix Bugs
7.4.7.6 21.97MB 2023-01-05 12:04:02
SF600 SPI NOR Flash Programmer Software [Modified Content]
SPI NOR flash bug fixed.
7.3.132.65 21.93MB 2022-10-31 13:12:12
SF600 SPI NOR Flash Programmer Software [Modified Content]
Fix the issue which software cannot be opened after first update
7.3.90.46 22.01MB 2022-03-31 15:31:32
SF600 SPI NOR Flash Programmer Firmware SF600/SF600Plus V7 Firmware
- For firmware version V7 and supports Win8.1 and later Windows OS
- Firmware V7 cannot downgrade to V6
7.3.07 143.42KB 2021-12-16 15:06:37
SF600 SPI NOR Flash Programmer Manual USB Driver User Guide for Win 8/8.1/10
Applicable Model:EM100Pro Series/SF100/SF600/SF600Plus/EE100/StarProg Series/ProgMaster Series
1.0 645.00KB 2023-07-05 14:57:03
SF600 SPI NOR Flash Programmer Manual SF Software User Manual for SPI NOR 1.0 2.44MB 2022-12-08 13:45:35
SF600 SPI NOR Flash Programmer Manual Application Note- SF100/SF600/SF700 In-System Programming (ISP) for Serial NOR Flash
1.2 792.71KB 2022-07-18 16:31:24
SF600 SPI NOR Flash Programmer Manual SF Series_FAQ 1.2 829.01KB 2020-05-26 18:11:10
SF600 SPI NOR Flash Programmer Manual [Linux User Manual]
Linux User Manual for SF100 /SF600 / SF600 Plus
Please read the manual before using the Linux software
528.39KB 2019-10-09 11:04:30
SF600 SPI NOR Flash Programmer Manual SF Series FAQ 1.1 742.92KB 2018-08-24 17:30:42
SF600 SPI NOR Flash Programmer Manual SF Firmware Support for Windows Update Procedure for SF series for SF100 / SF600 / SF600Plus
*If you need the firmware for Windows8.1/ Windows10, please contact DediProg sales.
2.2 727.26KB 2016-10-14 16:31:56
SF600 SPI NOR Flash Programmer Manual AN0106 On-Board SPI programming with DediProg tools 2.0 1.29MB 2015-02-25 10:47:19
SF600 SPI NOR Flash Programmer Manual AN0103 On-Board SPI programming DediProg tool( Designer version) 2.0 650.64KB 2015-02-25 10:46:43
SF600 SPI NOR Flash Programmer Flyer SF600 / SF600Plus Flyer 950.06KB 2022-11-09 09:47:04
SF600 SPI NOR Flash Programmer Specification SF600 / SF600Plus specification 2.6 1.61MB 2017-08-01 15:44:50
