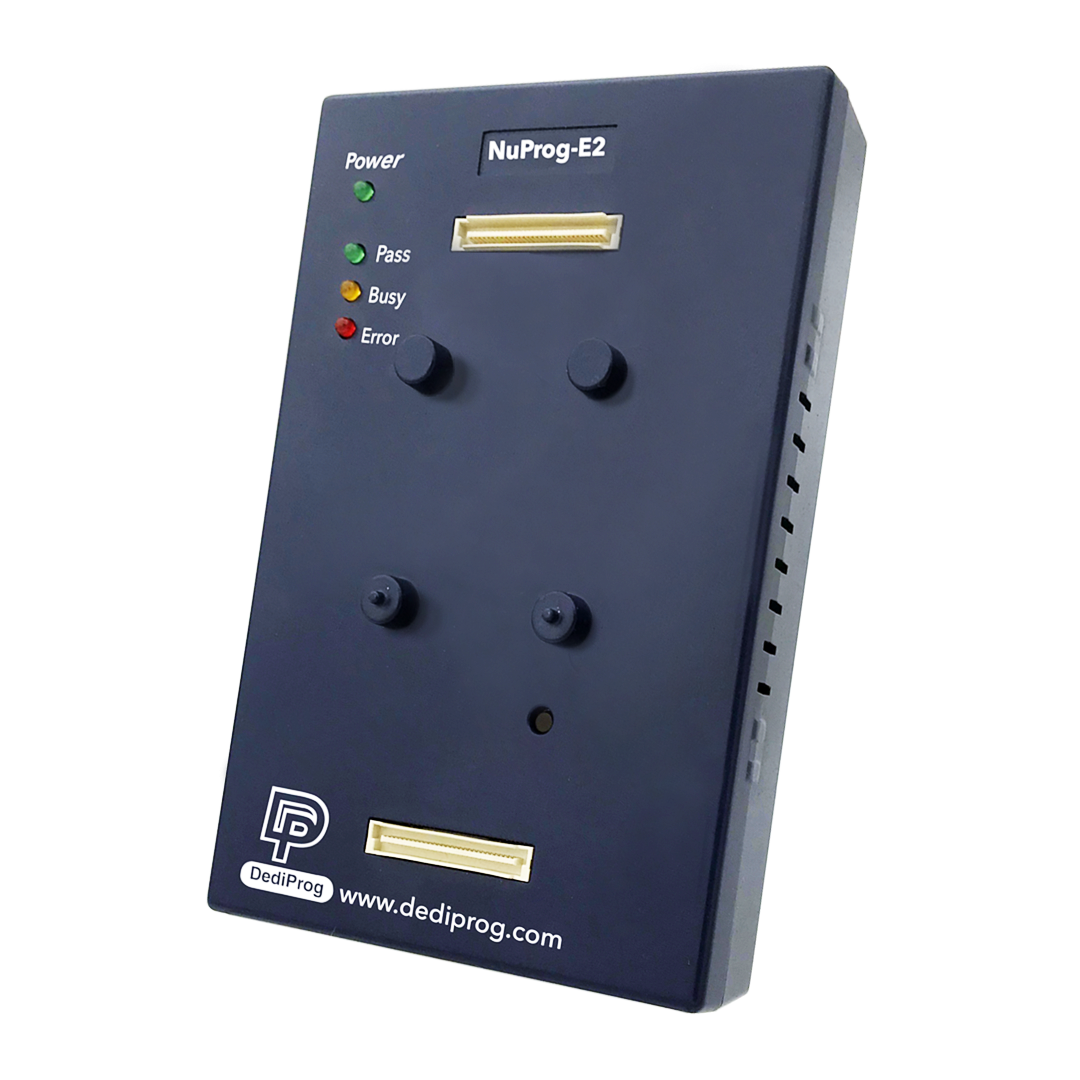

NuProg-E2 Engineering Universal Programmer

Model Name : NuProg-E2
Widely supports most IC type, portable engineering programmer
USD$760

Feature

NuProg-E2 is an universal engineering programmer. Widely supports most IC types on the market, UFS, eMMC, MCU, CPLD, FPGA, SPI NOR, SPI NAND, Parallel NOR, Parallel NAND and EEPROM, etc. And also support different types of IC packages: CSP, BGA, QFN, QFP, SOP, TSOP, SSOP, PLCC, DIP, etc. Designed FPGA kernel architecture supplies ultra high speed programming performance. The Programming project and sockets are compatible with NuProgPlus. Together with built-in SuperSpeed® USB 3.0 for high-speed communication, it is an efficient tool for you to focus on application analysis and product development.



Highlights

  • High Speed Programming
    • Built in high speed processor to achieve high programming speed.
  • Support UFS/UMCP and eMMC/eMCP programming
    • UFS part (v2.0/v2.1/v3.0/v3.1)
      • Support Descriptors, Attributes, Flags Setting
      • Support LUN configured and advance setting
    • eMMC part
      • Support User Area, Boot1/2 Partition and Extend CSD
      • Support RPMB, GPP1~4, and Enhanced mode
  • Support USB 2.0 and USB 3.0 (Using Power Adapter)
  • Support Various Storage IC
    • UFS, eMMC, MCU, SPI NOR, SPI NAND, Parallel NOR, Parallel NAND, EEPROM, CPLD, FPGA
  • Support All IC Package
    • CSP, BGA, QFN, QFP, SOP, TSOP, SSOP, PLCC, DIP, etc.
  • Support various file formats:
    • Binary (bin/rom), Intel Hex (h16/h20/hex), Motorola S19(mhx/mot/s19/srec) and specific of MCU IC.
  • Regular software update
  • Programming projects and sockets are compatible with NuProgPlus. (NuProg-E2 can share the socket with NuProgPlus, and NuProg-E2 only supports the upper socket of the Dual Socket.)
  • The socket adaptors for NuProg-E2 and NuProg-E are not compatible.
  • Support Windows 7/8/8.1/10/11

Please note the online programming(ISP) is not available with NuProg-E2.

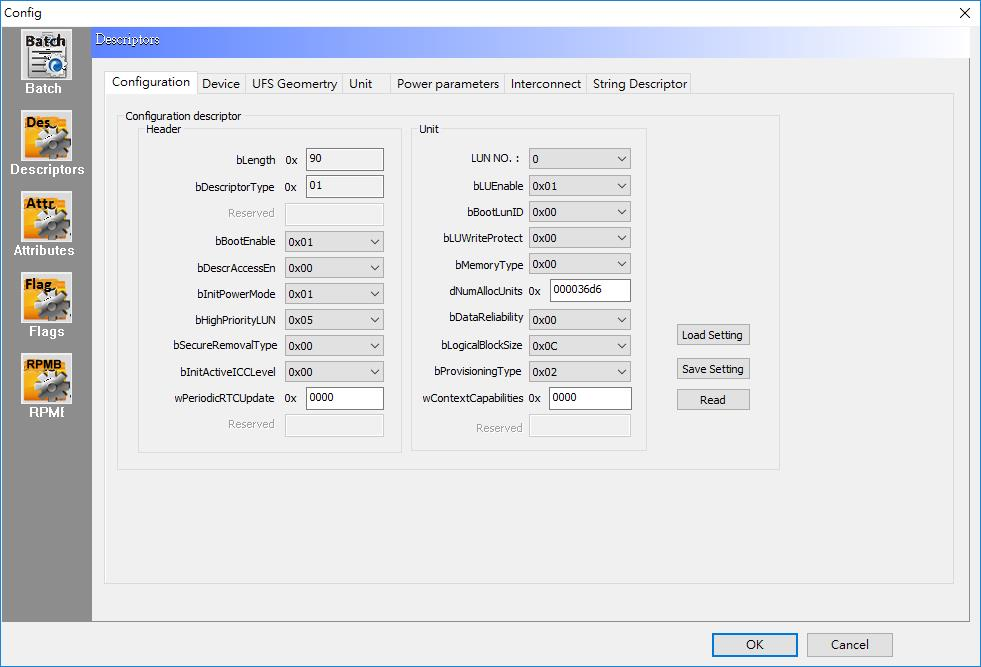

UFS IC Detail Setting
Detail Settings of descriptor/ attributes/ flags/ RPMB

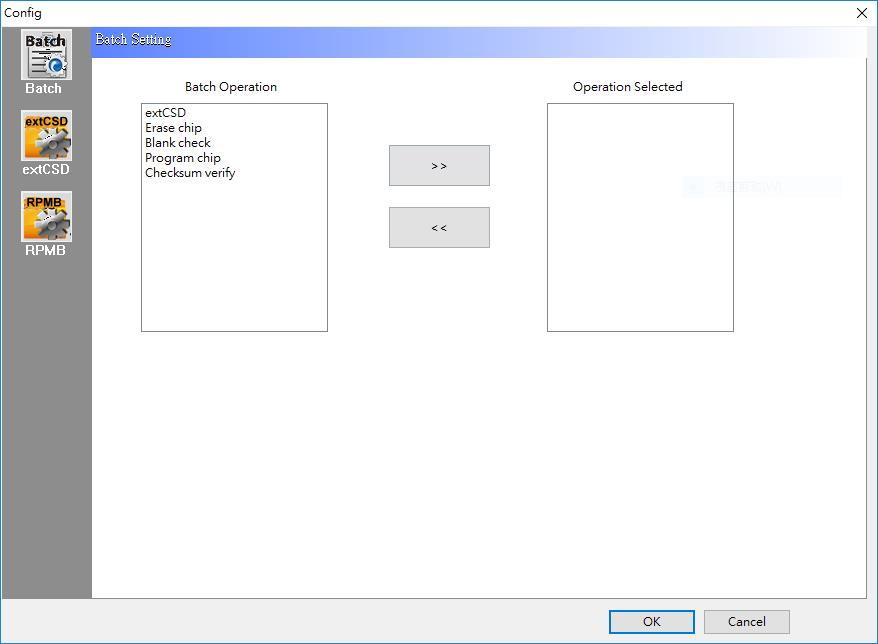

eMMC IC Detail Setting
Detail settings of extCSD/ RPMB

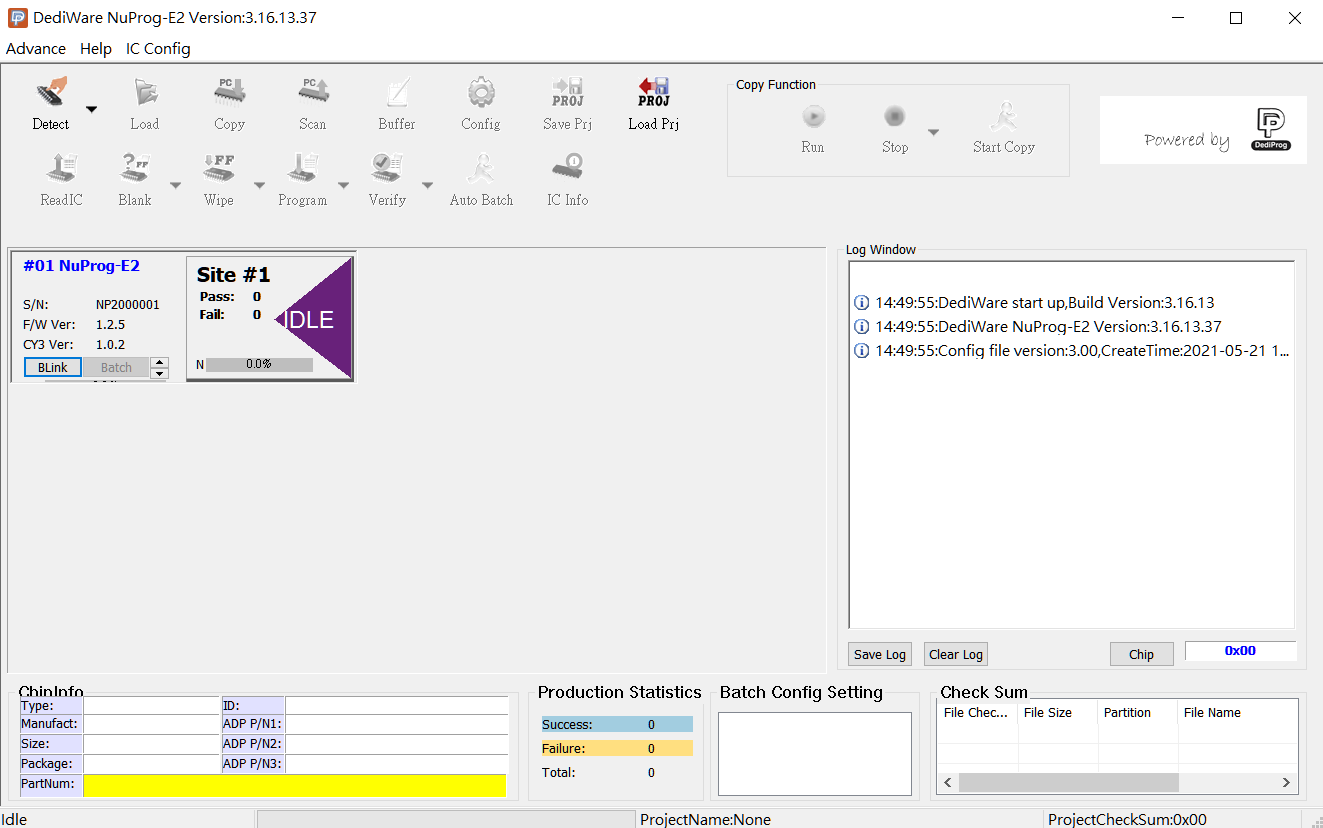

Engineering Mode
For engineers and expert to access advanced features for development, repairing etc.

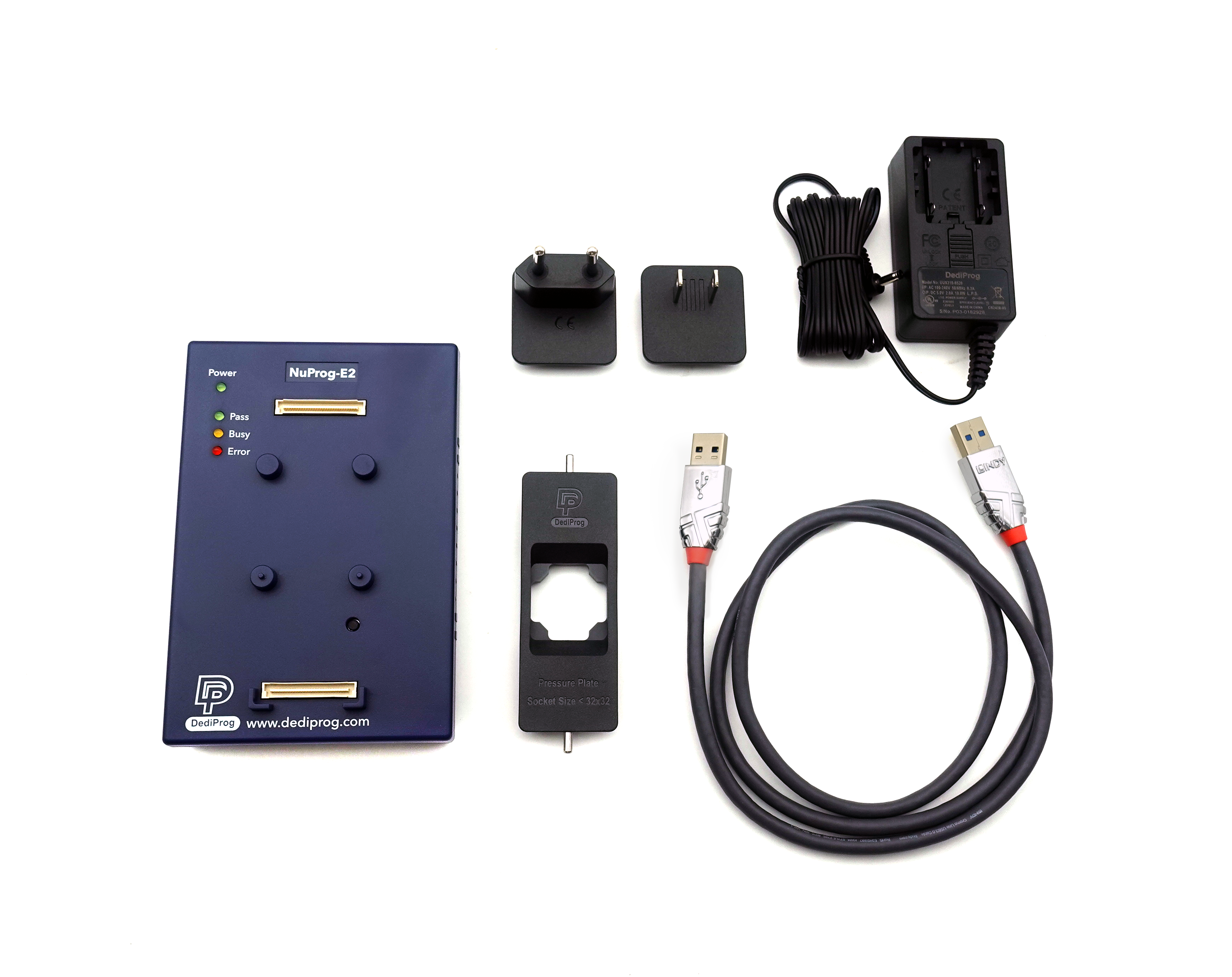

Standard Package
  • NuProg-E2 x1
  • USB 3.0 Cable x 1
  • AC 100~240V to DC 5V/1A  Power Supply x1 (In order to make NuProg-E2 more stable, please make sure the power adapter is connected, and it is recommended to connect the power first, and then plug in USB cable.)
  • DP Socket Press Plate x 1

Related Accessories

Product File Type File Description Version Download File size Last Update
NuProg-E2 Engineering Universal Programmer Software DediWare Software (This version is for StarProg Series, ProgMaster Series, K110, NuProg-E2 and NuProgPlus Series)

[Modified Content]
1. Fix checksum method will be changed after load project.
2. Sync chip checksum between UI and project file.
3. Engineering verify init. fail, production pass. It is due to timing setting.
4. Fix file browser can not access shortcut issue.
5. Fix MD5 checksum display issue.


[New Feature]
1. Support S19 offset.
2. Add enable customized UI layout.
3. Support dpFW and DPFPGA.


[Remark]
Firmware Support
The firmware needs to be updated as below
NPPEU: 2.11.2 or above
NPPG: 2.2.18 or above
NuProgPlus CY3: 1.10.13
Old NuProgPlus-U16 FPGA: v38; New NuProgPlus-U16/U8 FPGA: v1043
3.18.16.4 New 487.06MB 2023-10-18 11:27:45
NuProg-E2 Engineering Universal Programmer Software USB Driver
- Update Digital Signature
5.65MB 2023-03-30 17:44:03
NuProg-E2 Engineering Universal Programmer Software DediWare Software (This version is for StarProg Series, ProgMaster Series, K110, NuProg-E2 and NuProgPlus Series)
[Modified Content]
1. Fix save project issue. if using IAP file and setting option bytes., it will hang up during production mode.
2. Fix handler software do not receive "initing" status.

[New Feature]
1. Add Option size on general GUI


[Remark]
Firmware Support
The firmware needs to be updated as below
NPPEU: 1.9.8 or above
NPPG: 1.3.2 or above
NuProgPlus CY3: 1.0.13
NuProgPlus FPGA 38
3.17.15.2 351.81MB 2023-03-07 16:45:39
NuProg-E2 Engineering Universal Programmer Software DediWare Software (This version is for StarProg Series, ProgMaster Series, K110, NuProg-E2, and NuProgPlus Series)
[Modified Content]
1. Add MT256GAXAU4U22[BGA254]
2. Fix DediWare Selector load prj issue for oprj


[Remark]
Firmware Support
The firmware needs to be updated as below
NPPEU: 1.9.8 or above
NPPG: 1.3.2 or above
NuProgPlus CY3: 1.0.13
NuProgPlus FPGA 38
3.17.9.19 238.94MB 2023-03-07 16:44:07
NuProg-E2 Engineering Universal Programmer Manual Dediware Software User Manual for NAND Flash 2.6 2.48MB 2023-05-09 16:36:55
NuProg-E2 Engineering Universal Programmer Manual Dediware-Checksum Calculation Methods 583.87KB 2023-04-24 14:40:45
NuProg-E2 Engineering Universal Programmer Manual DediWare Software User Manual 3.0 4.44MB 2022-05-11 10:10:00
NuProg-E2 Engineering Universal Programmer Manual NuProg-E2 Programmer User Manual 1.0 1.67MB 2021-04-22 17:06:47
NuProg-E2 Engineering Universal Programmer Manual Application Note-How to use Unique key on dediware 2.2 2.40MB 2019-08-19 14:43:31
NuProg-E2 Engineering Universal Programmer Manual Dediware Software User Manual For SPI NOR Flash Option Bytes 1.0 1.81MB 2017-05-08 17:17:43
NuProg-E2 Engineering Universal Programmer Flyer NuProg-E2 Engineering Universal Programmer Flyer 764.44KB 2021-04-13 16:38:27
