NuProgPlus-U8 Universal Gang Programmer and Duplicator

Model Name : NuProgPlus-U8
USB3.1 powerful universal programmer, support EEPROM, Flash, MCU, eMMC, UFS, PCI-E SSD and CANbus devices.
This item is unavailable for online purchase.

Feature

NuProgPlus Series is the powerful universal programmer which is capable of supporting EEPROM, Flash, MCU, eMMC, UFS, PCI-E SSD, and CANbus devices programming. It can also support PCI-E, eMMC and UFS device duplicating. With the all newly designed FPGA kernel architecture, total sockets can be extended up to 16 SPI Flash programming or 16 eMMC/UFS IC duplicating in parallel. NuProgPlus-U8 is the manual operation model of NuProgPlus Series. With the project file(s), the user can use the LCD and keypad to operate the programming or duplicating without PC. Hand Press Fixture is an option accessory to help the user pick and place the IC easily.



Highlights

  • All newly designed FPGA kernel architecture supplies ultra high speed programming performance
    • Support both Copy Mode and Program Mode
  • Flexible to support various programmable IC/device in the market
    • Support various storage IC: UFS, eMMC, SPI NOR, SPI NAND, Parallel NOR, Parallel NAND, and EEPROM
    • Support MCU, CPLD, and FPGA
    • Capable to support PCI-E SSD and CAN bus device
    • Support various IC package: CSP, BGA, QFN, QFP, SOP, TSOP, SSOP, PLCC, DIP, etc.
    • Support various file format: Binary(bin/rom), Intel Hex (h16/h20/hex), Motorola S19 (mhx/mot/s19/srec) and the specific file format of MCU IC
  • Support up to 8 programming sockets (Only 4 sockets for PCI-E, but can expand to 16 sockets for SPI Flash/UFS/eMMC)
  • Duplicating for UFS/eMMC/PCI-E (Master IC/device is required as the data source)
    • Duplicate UFS data, LUN configuration, and Descriptors/Attributes/Flags. (Not support RPMB duplicating)
    • Duplicate eMMC boot area, GPP, user area, and ExtCSD.  (Not support RPMB duplicating)
    • Duplicate PCI-E SSD in different modes (Whole disk, selected partition with specific percentage)
  • Support NAND Flash Skip Bad Block management and partition file (CSV/DEF/MBN)
  • Support project file for production programming demand
    • Integrate high speed storage to store project file or project folder for more stable and faster transmission
    • Project download speed up to 100 MB/s
    • Press Start button to start programmng after loading the project file, so operator will not load the wrong image file or select the incorrect IC part number
  • Three kinds of start modes for productivity improvement
    • Manual Mode
    • Auto Detection Mode
    • Handler Mode
  • PC can link to multiple NuProgPlus-U8 and program IC at the same time
  • Stand-alone function allows user to program without a computer and only need to operate through LCD keypad

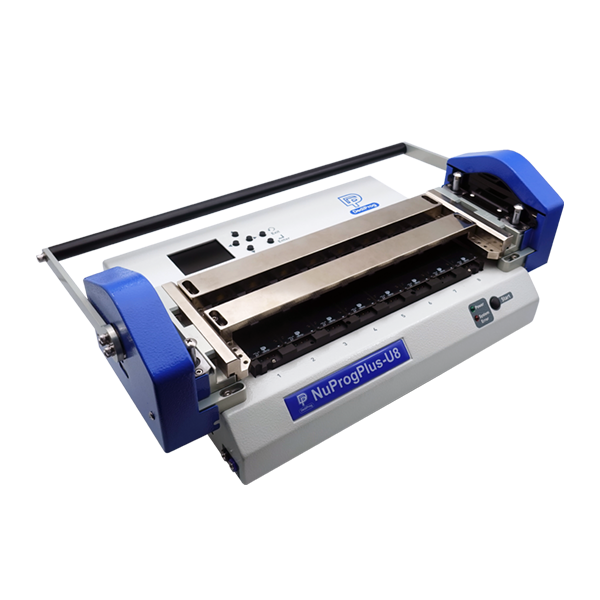

NuProgPlus-U8 With Hand Fixture

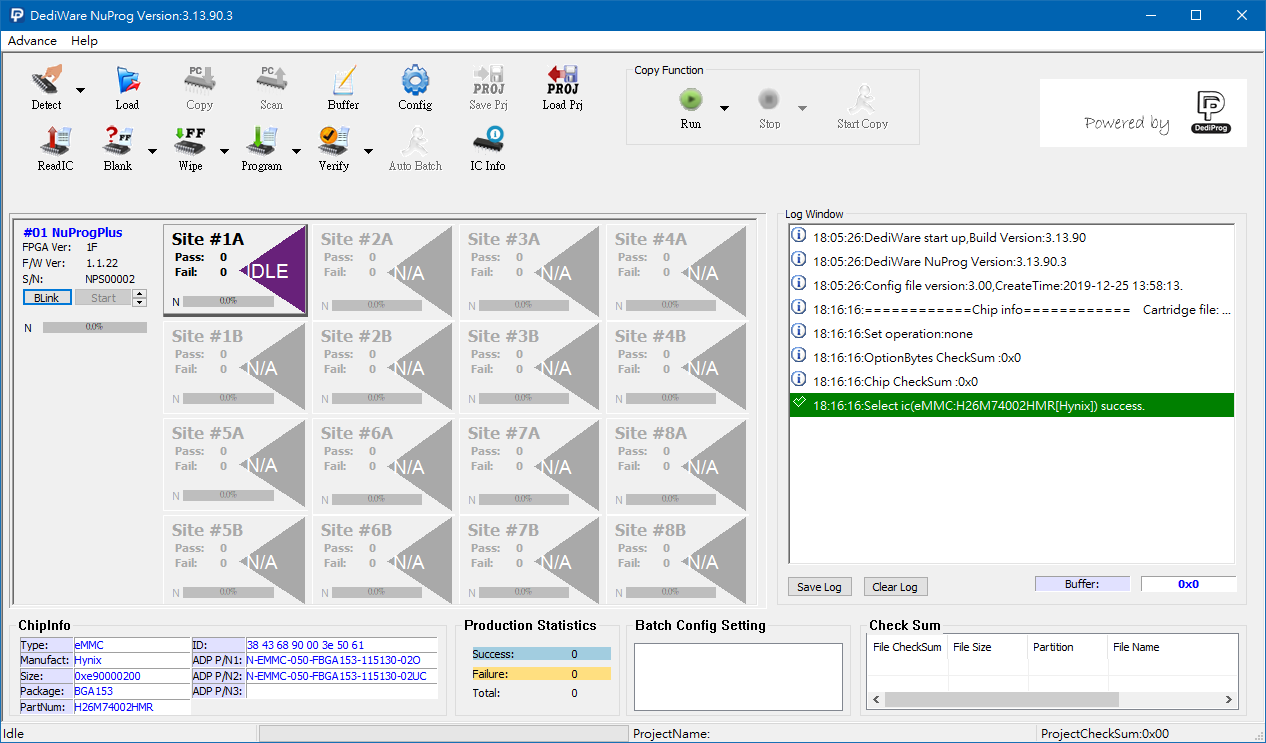

eMMC/UFS programming and duplicating

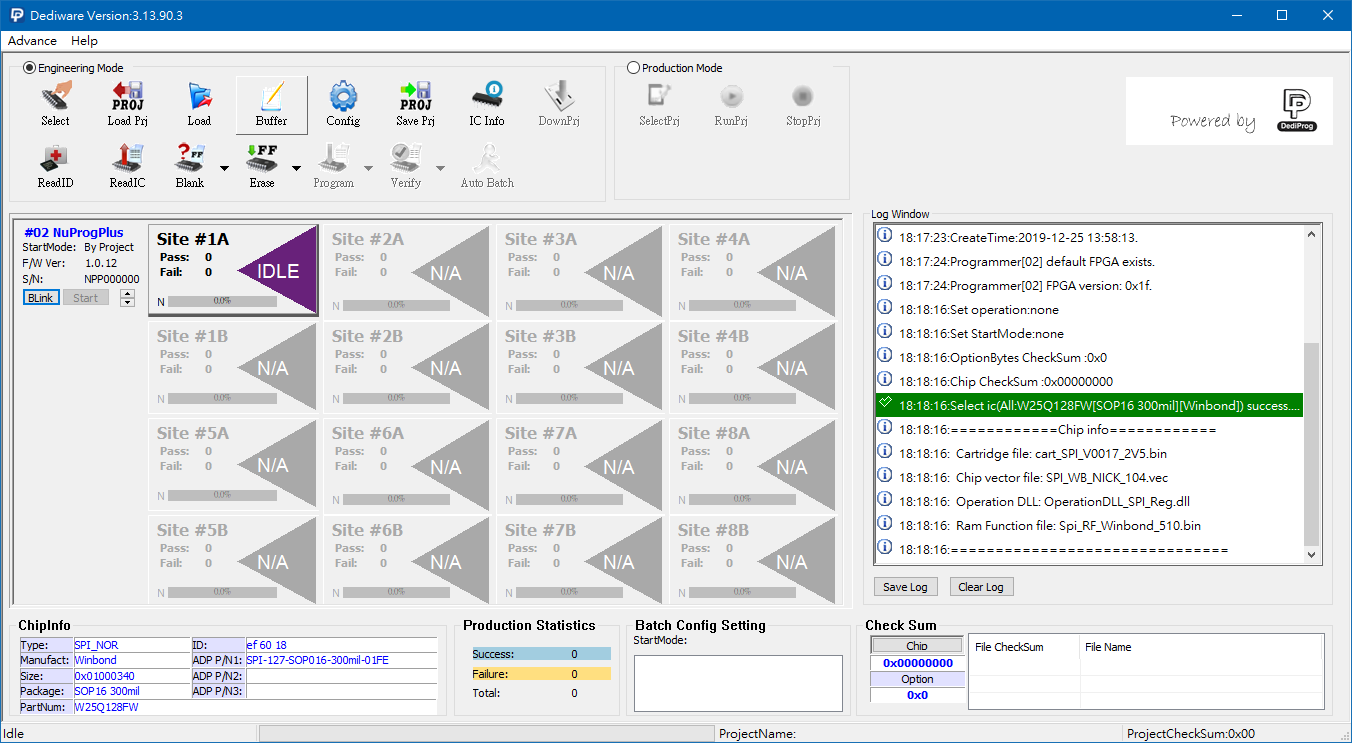

MCU/Flash programming
Standard Package
  • NuProgPlus-U8 x 1
  • USB 3.0 Cable x 1
  • Power Adaptor x 1



Optional Purchase
  • Socket Adaptor
Product File Type File Description Version Download File size Last Update
NuProgPlus-U8 Universal Gang Programmer and Duplicator Software Dediware Software (This version is for StarProg Series, ProgMaster Series, K110, NuProg-E, and NuProgPlus-U8)
[Modified Content]
1. DediWare General GUI shows IC partition name in load file list.
2. eMMC project does not support blank check.
3. Fix NuProg-E verify fail, but report pass issue.
4. Improve get socket info speed (get socket info before project running).
5. Modify download project timeout to 250s.
6. Fix MD5 checksum display issue.

[New Feature]
1. Add USB dongle unique key function.
2. Add more clear notification for swap under Edit Window.

[Remark]
Firmware Support
NPPEU 1.7.6/7
NuProgPlus BaseUint FPGA V33
ProgMaster 4.0.8
3.16.16.3 New 149.61MB 2021-06-11 17:00:09
NuProgPlus-U8 Universal Gang Programmer and Duplicator Software Dediware Software (This version is for StarProg Series, ProgMaster Series, K110, NuProg-E, and NuProgPlus-U8)
[Modified Content]
1. Support NuProg-E2
2. Fix load hex file issue
3. Add a customized folder dialog
4. Add S3909 MCU verification message
5. Fix firmware update fail issue
6. Add get socket SN for auto handler
7. Enhance eMMC extCSD setting dialog in DediWare eMMC/UFS GUI
8. Do not allow user to list project file during UFS/eMMC during copying
9. Display full path of network drive disk in file/folder browser
10. Fix ProgMaster load verify only project file fail issue.
11. Auto delete programmers default project file after project stopped.
12. Add to display LC4800/4600 calculation mode
13. Fix sometimes eMMC/UFS can not stop project.


[Remark]
Firmware Support
NPPEU 1.6.2/1.6.3
NPPG 1.1.5 or 1.1.7 for encrypted project
NuProgPlus BaseUnit FPGA V33
NuProgPlus CY3 FW 1.0.13
ProgMaster 2.2.66
3.16.8.3 156.06MB 2021-03-12 10:28:12
NuProgPlus-U8 Universal Gang Programmer and Duplicator Software Dediware Software (This version is for StarProg Series, ProgMaster Series, K110, NuProg-E, and NuProgPlus-U8)

[Modified Content]
Fix hex file issue

[New Feature]
Add chip version

[Remark]
NPPEU 1.4.15
NPPG 1.1.5 or 1.1.7 for encrypted project
NuProgPlus BaseUnit FPGA V33
NuProgPlus FW CY3 FW 1.0.12
ProgMaster 2.2.66
3.15.27.1 125.09MB 2020-11-13 10:52:55
NuProgPlus-U8 Universal Gang Programmer and Duplicator Flyer NuProgPlus-U8 Universal Gang Programmer and Duplicator Flyer 957.47KB 2020-01-10 13:23:50
