Burn-in Socket

Model Name : Burn-in Socket

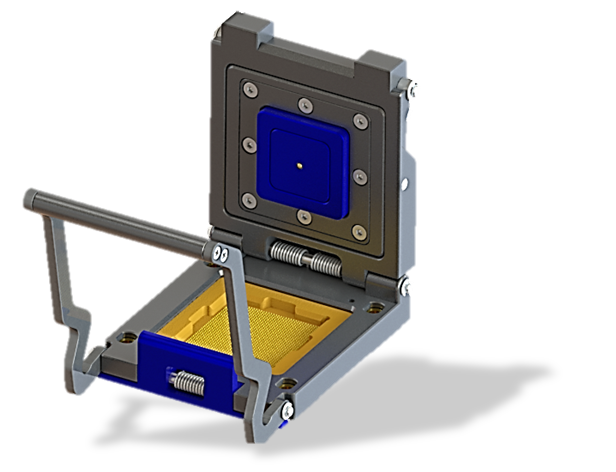

DediProg's Burn-in Socket features a modular design, enabling the installation of a heat sink or an ITC module based on the testing requirements.
This item is unavailable for online purchase.


Burn-in Socket

DediProg's Burn-in Socket features a modular design that allows for the installation of a heatsink or ITC module according to testing needs, and includes thermal analysis for close evaluation. It contains high-performance spring-loaded pins that provide stable testing performance across a wide temperature range. For high pin count testing, we also offer a patented labor-saving structure to enhance ease of use.





SPEC

  1. IC Size: 30 x 30 mm (max.)
  2. Pin Count: ~3,000 Pin
  3. Operating Temp.: -55℃~150℃



Contact Element

  1. Pogo Pin
Contact ElementPogo Pin
Life Time ~ 1,000,000 Cycle
Pitch>0.15mm
Temperature-55℃ to 175℃
Bandwidth<25GHz
IC PackageAll IC Package
Ease of RepairLow



Material

  1. PEEK-Ceramic
  2. Ultem-2300
  3. Aul.-6061






Model


Model

M2632

M2632-HS

M5060

M5060-HS

Withstand voltage AC 700V For 1 Min. Insulation Resistance 1000MΩ at DC 500V

Outer Diameter

26 x 32mm

26 x 32mm

50 x 60mm

50 x 60mm

IC Size Range

0.8 x 0.8mm ~ 13 x 13mm

0.8 x 0.8mm ~ 13 x 13mm

< 30 x 30mm

< 30 x 30mm

Operation Temperature

-55~150 ℃

Max. Pin Count

~300 Pin

~300 Pin

~3000 Pin

~3000 Pin

Thermal Power Diss.

~2W

~10W

~10W

~50W



HAST (Highly-Accelerated Temperature & Humidity Stress Test)
→ 130°C / 85% at 480hrs
HTOL (High Temperature Operating Life Test)
 → 150°C at 1000hrs
LTOL (Low Temperature Operating Life Test)
→ -55°C at 1000hrs






Structure



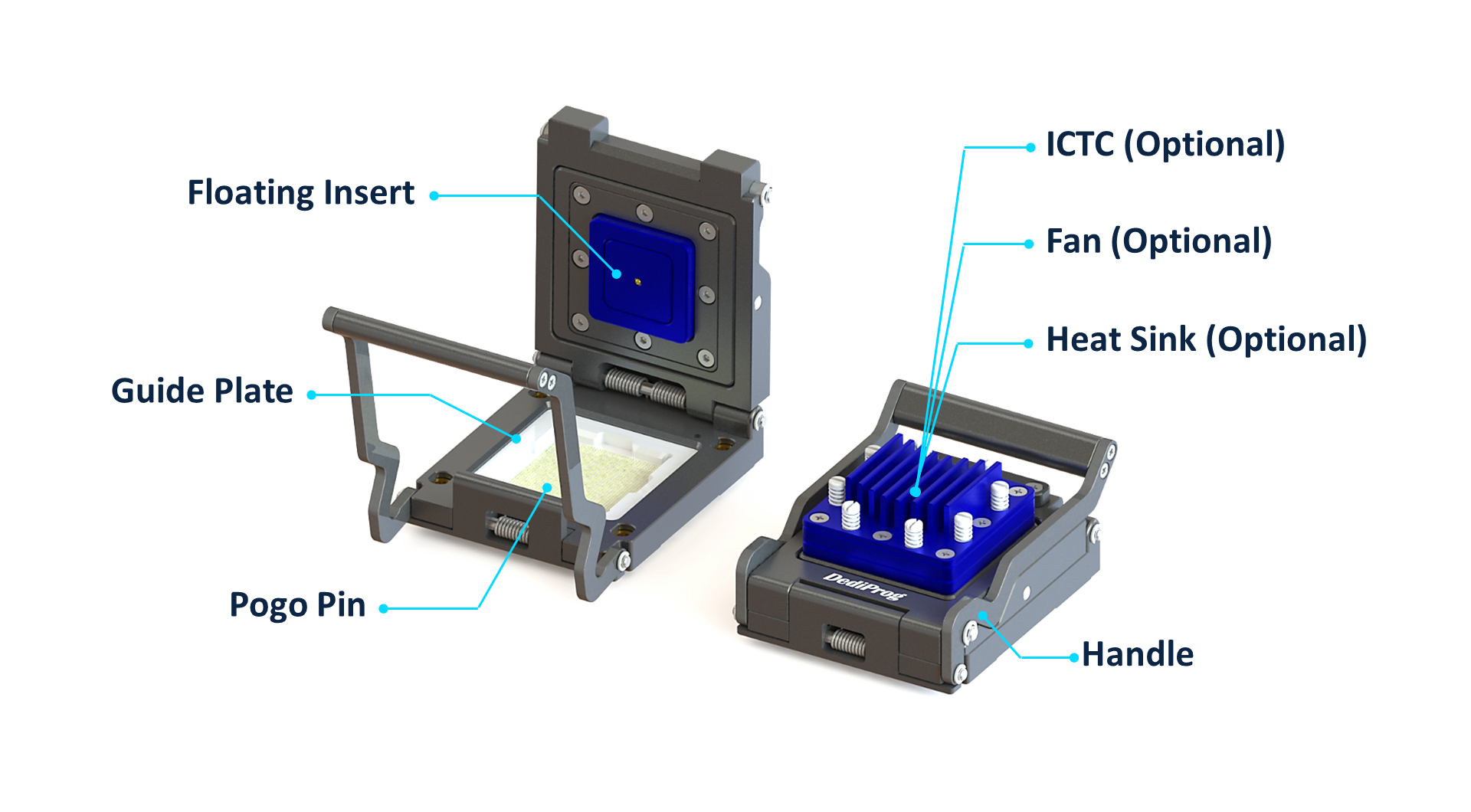

Model: M5060 / M7080 Burn-in Socket

M5060 / M7080 Burin-in Socket

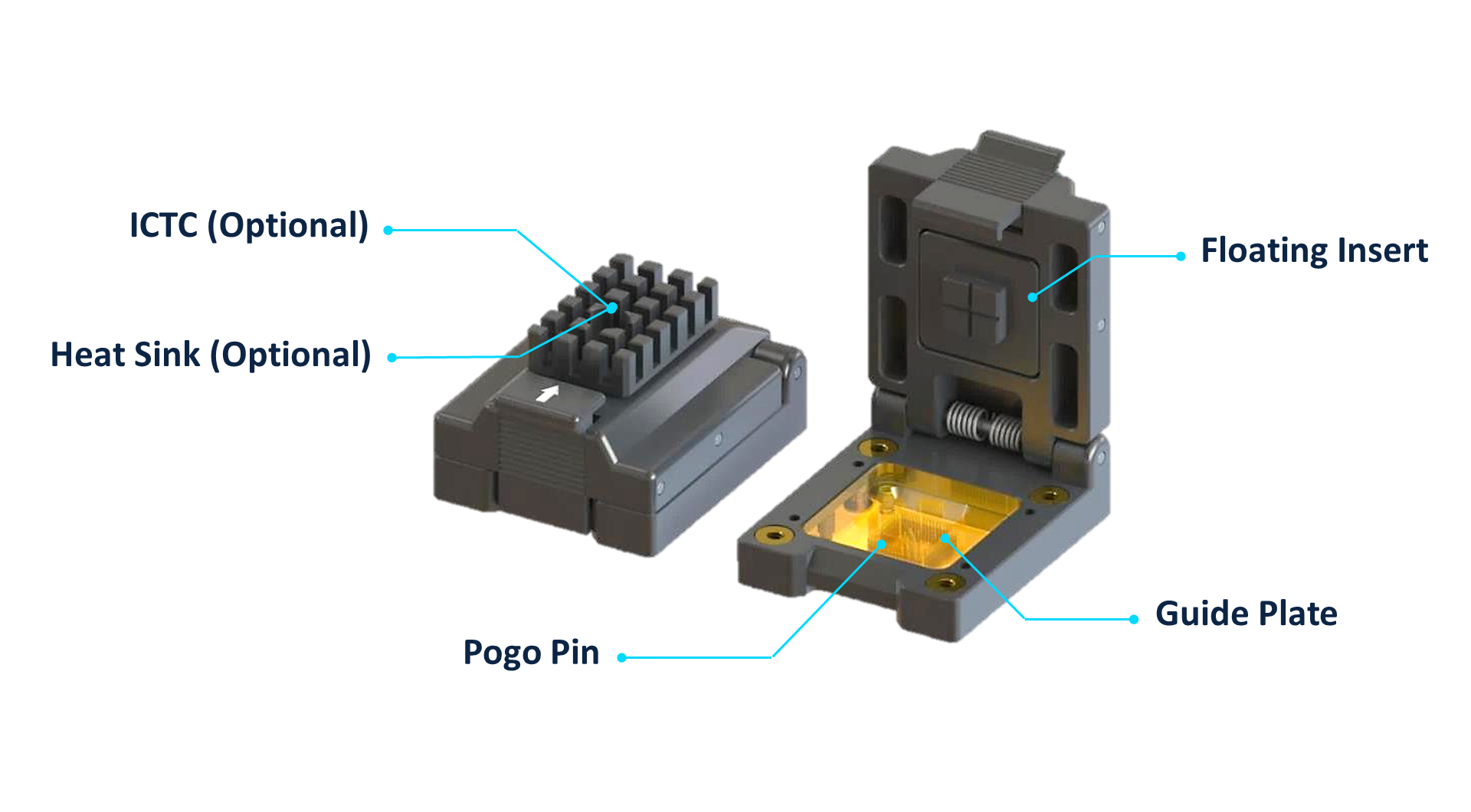

Model: M2632 Burn-in Socket

M2632 Burin-in Socket




Frequently Asked Questions (FAQ)



Q: What are the primary applications for Burn-in Sockets?
Burn-in Sockets are engineered for high-reliability IC testing, providing a robust solution for high-temperature, high-current, and extended-duration operation. They ensure IC durability and operational stability, delivering consistent chip quality for production and shipment.


Q: What are the key features of Burn-in Sockets?
Designed for continuous high-temperature and high-current operation, Burn-in Sockets securely hold ICs while maintaining uniform contact pressure. Integrated thermal management capabilities support efficient heat dissipation, ensuring stable electrical performance and signal integrity throughout the testing process.


Q: What materials are used in Burn-in Sockets?
Standard Burn-in Sockets utilize high-temperature engineering plastics that deliver dimensional stability, mechanical robustness, and long-term reliability under prolonged thermal and electrical stress. Contact elements are typically high-wear metals or plated probes for consistent connectivity. For high-frequency or high-power ICs, specialized plastics with low dielectric constants or enhanced thermal conductivity are employed to optimize signal fidelity and heat dissipation.


Q: What are the advantages of a modular Burn-in Socket design?
Modular Burn-in Socket architecture accelerates new product introduction, improves manufacturing efficiency, and ensures consistent, reliable testing performance. Under high-temperature, high-current, and extended-duration conditions, modular sockets deliver repeatable, high-fidelity test results.
