SF600Plus SPI NOR Flash Programmer

Model Name : SF600Plus
This SPI NOR Flash programmer supports ICP/ISP Programming, Socket Adaptor Programming, and Stand-Alone Programming!

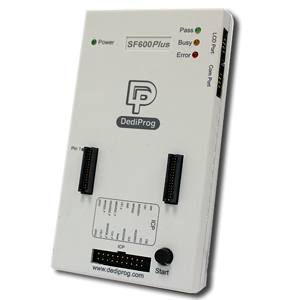

SF600Plus is high speed "in System Programming" programmer to update the SPI Flash soldered on board (In Circuit Programming) or in the socket adaptor (Offline programming). The programmer is easily controlled by the computer DediProg Software through the USB bus offering a friendly interface and powerful features to users.

SF600Plus combines the advantages of SF100 with additional improvements: High-speed USB and higher SPI performances.

SF600Plus is an upgrade version of SF600. The main difference is that SF600Plus embeds an 8GB memory, which allows standalone programming.



  • USB High speed and high SPI performance, support up to 2Gb SPI Flash
  • In-Circuit Programming: Program on board SPI Flash
  • Off-line Programming: Program SPI Flash in the socket
  • Start button feature: Able to Batch in the USB mode
  • Standalone mode: Support Start button programming and IO Port programming.
  • ISP Port supports 2 CS pins to program two Serial Flash memories
  • Signal conflict protections
  • Multi-Programmers Capability through USB
  • Support 1.8V low voltage IC
  • Support Windows 2003 and above
  • Support both 32 and 64 bit OS

High performance (25MHz, Single IO)

USB Mode Reference IC Density  (Program + Verify)
Memory size W25X80VSSIG 8Mb 9s
W25Q16VSSIG 16Mb 11.6s
W25Q32VSSIG 32Mb 12.6s
W25Q64FVSSIG 64Mb 31s
W25Q128BVFIG 128Mb 61.7s
W25Q256FVFIG 256Mb 89.2s
S25FL512SAGMFI011 512Mb 147.4s


*Please note the programming and verify time will depend on different IC type; please refer to the IC specification before programming.



SF600Plus is designed with ISP header, through an appropriate connector, users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status. Please refer to Table 1 for the SF600Plus 2x10 header pin out. DediProg also provides the SF600Plus ISP Cable which is used to connect the programmer to the 2X6 2.54mm ISP Pin Header on board, please refer to Table 2 for the SF600PlusISP Cable 2x6 pin out.

Table 1: SF600Plus ISP Header Pin Out (2x10)

1 Vpp CS2 2
3 CS1 Vcc 4
5 MISO/DQ1 Hold/DQ3 6
7 Wp/DQ2 CLK 8
11 NC Reset/IO3 12
13 NC NC 14
15 NC NC 16
17 NC NC 18
19 GPIO1 GPIO2 20


Table 2: ISP Cable Connector Pin Out (2x6)

1 Vpp CS2 2
3 CS1 Vcc 4
5 MISO/DQ1 Hold/DQ3 6
7 Wp/DQ2 CLK 8
11 NC Reset 12


The SF600Plus USB software tool chain offers high flexibility and fits the different and highest requirements:

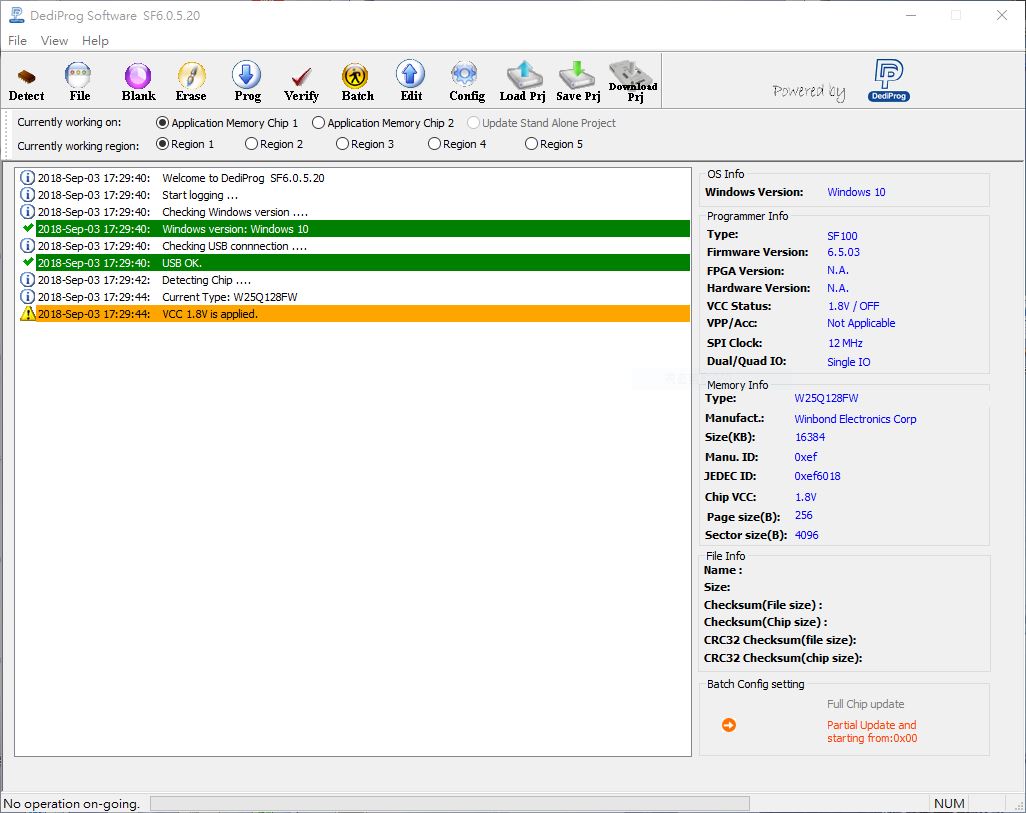

Engineering Mode
For engineers and expert to access advanced features for development, repairing etc.
Production Mode

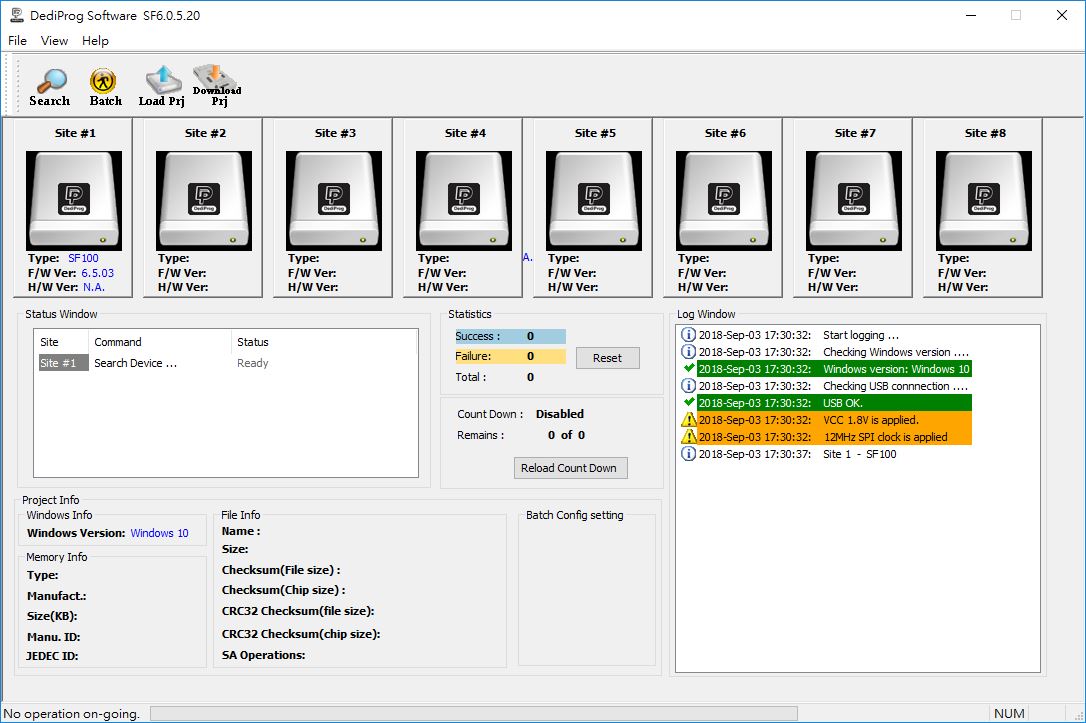

For operators in production to control multiple programmers and improve the throughput.

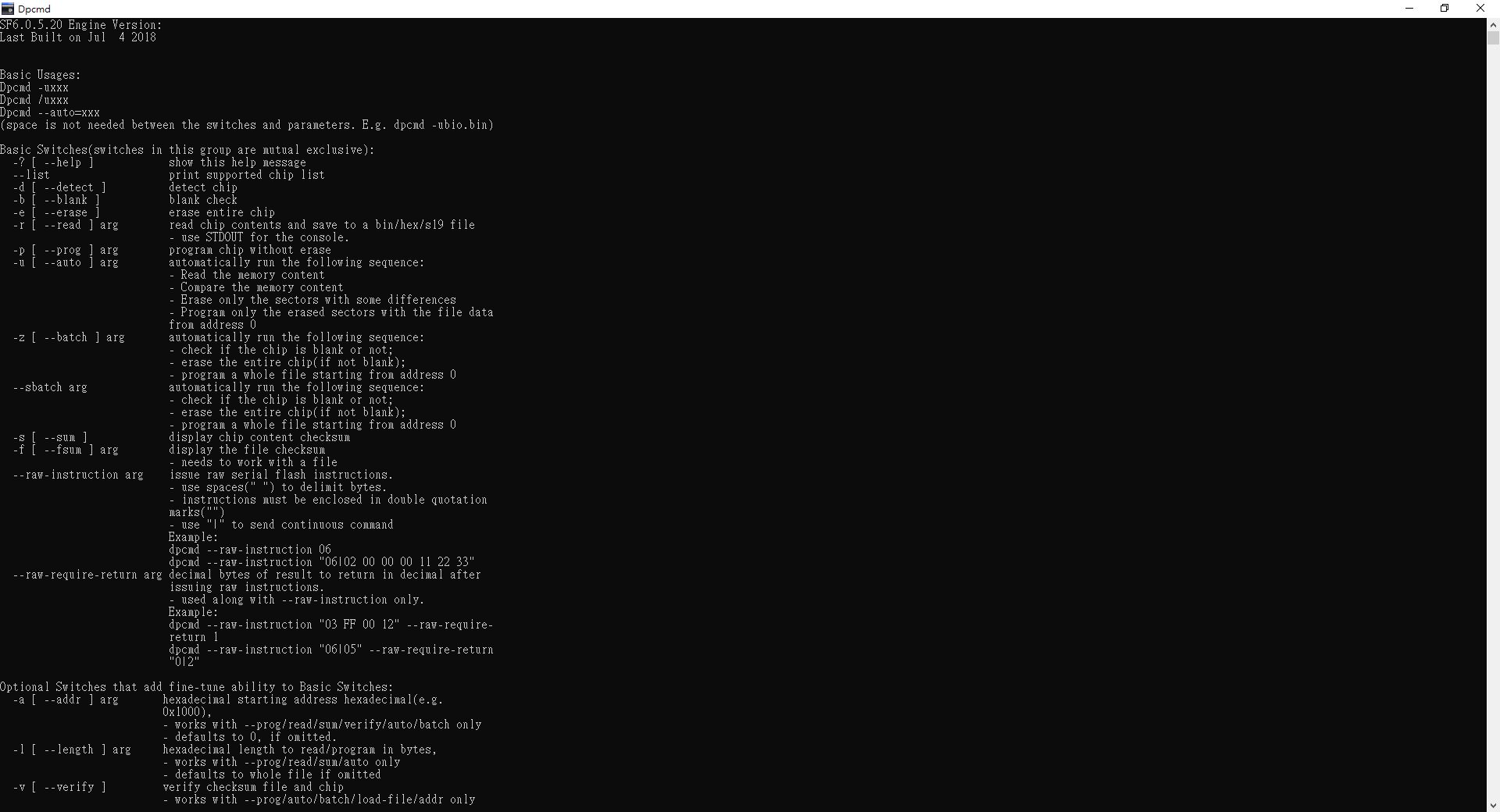

Command Line
Customer software can control multiple SF600Plus programmers by command line interface.

Hardware Requirement for ISP :

To have a clear understanding on the different ISP or backup boot methods and different reference schematics, please download our dedicated application notes: AN0103 and AN0106


Standard Package
  • SF600Plus Programmer x 1
  • USB Cable x 1
  • AC Power Adaptor (ME-SW-ADP-1) x 1
  • ISP Cable (ISP-600-CB1-G) x 1
  • SF100 2.54mm 2*4 ISP Cable (ISP1-CB) x 1
  • SF600 Universal Adaptor (ADP-SF600-TO-SF100) x 1


Optional Purchase
  • Backup Boot Flash Module-8N
  • Backup Boot Flash Module-8W
  • Backup Boot Flash Module-D8W
  • Backup Boot Flash Module-DIP
  • Backup Boot Flash Module-16W
  • Backup Boot Flash Module QUAD-8W

Related Accessories
