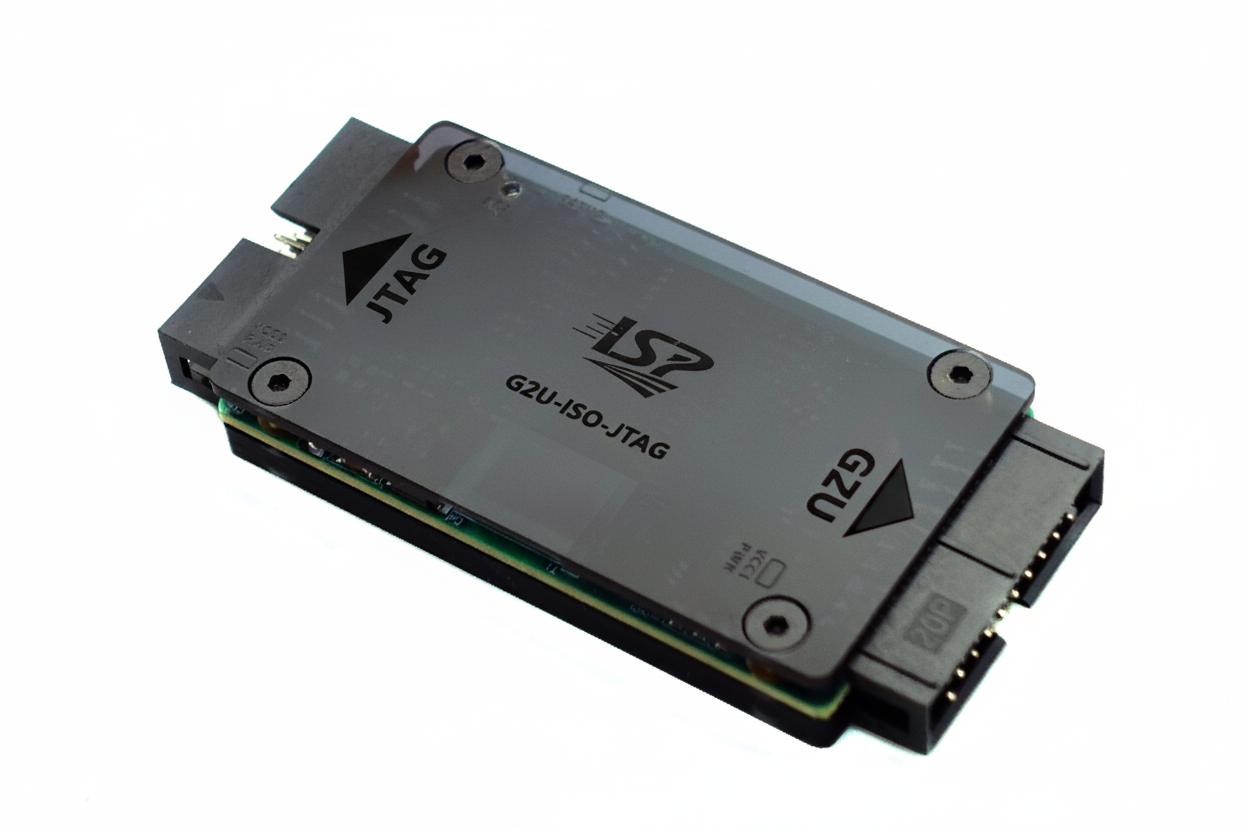

G2U-ISO-JTAG Isolation Board

Model Name : G2U-ISO-JTAG
The G2U-ISO-JTAG isolation board is designed to isolate the target board and the device when connecting via JTAG using the SF600Plus-G2U, protecting both devices from voltage fluctuations or ESD damage.
USD$ 138

Description

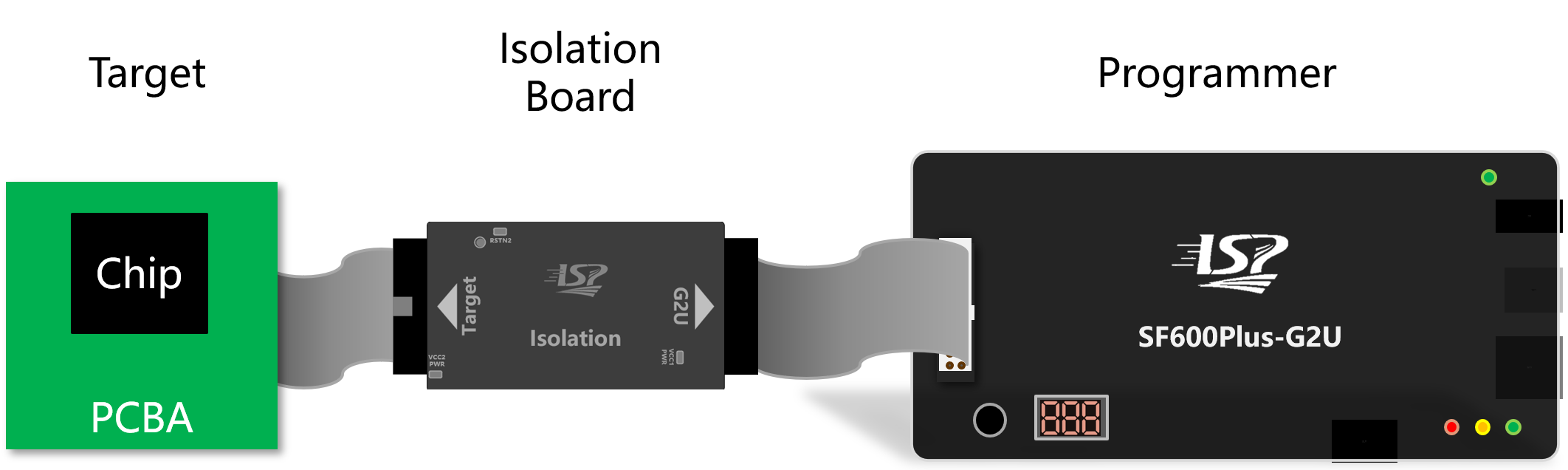

The G2U-ISO-JTAG isolation board is designed to isolate the target board and the device when connecting via JTAG using the SF600Plus-G2U, protecting both devices from voltage fluctuations or ESD damage. The target end of this isolation board is standard 20 pins JTAG port, allowing it to be used with other JTAG devices as well.



SPEC

Item

Specification


DC voltage isolation 5000V
Target connectionStandard JTAG 20-pin
Target VCC supported2.5V – 5V
JTAG clock speedUp to 8MHz
Status indicators3 LEDs: Source Power, Target Power, Target Reset
Control1 button for target reset
