Pressure Conductive Silicone Rubber

Model Name : PCR
Pressure Conductive Silicone Rubber (PCR) is a common contact component used in IC packaging testing, characterized by high transmission rate, low resistance, and absence of indentation marks.
This item is unavailable for online purchase.

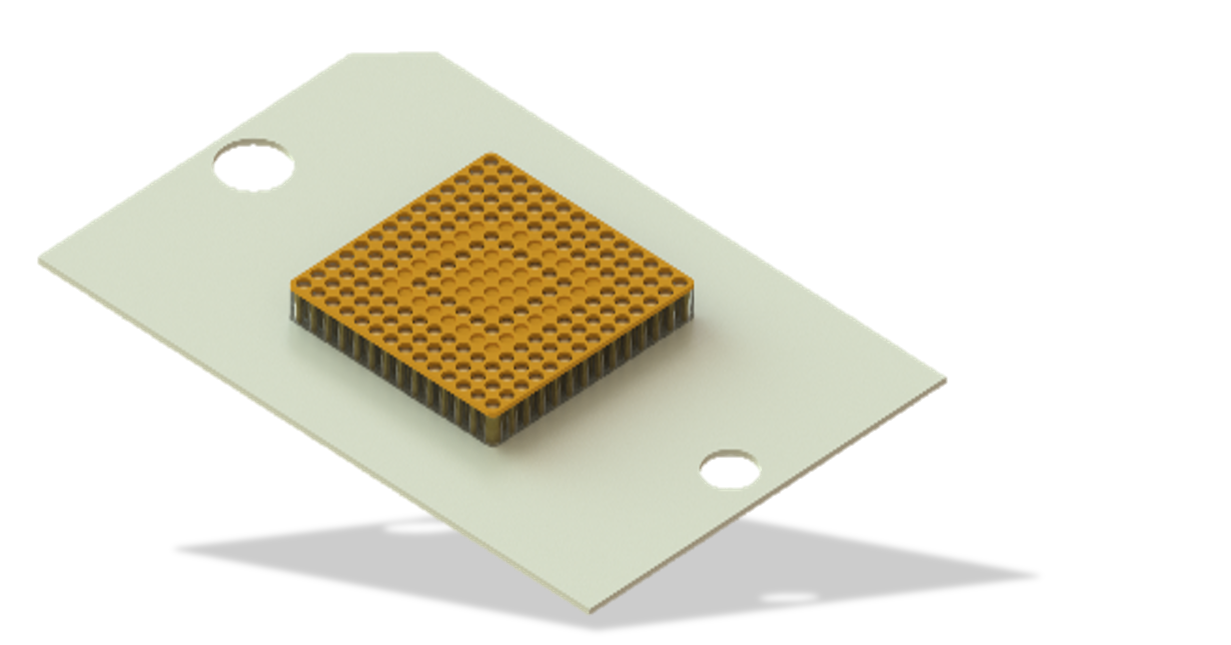

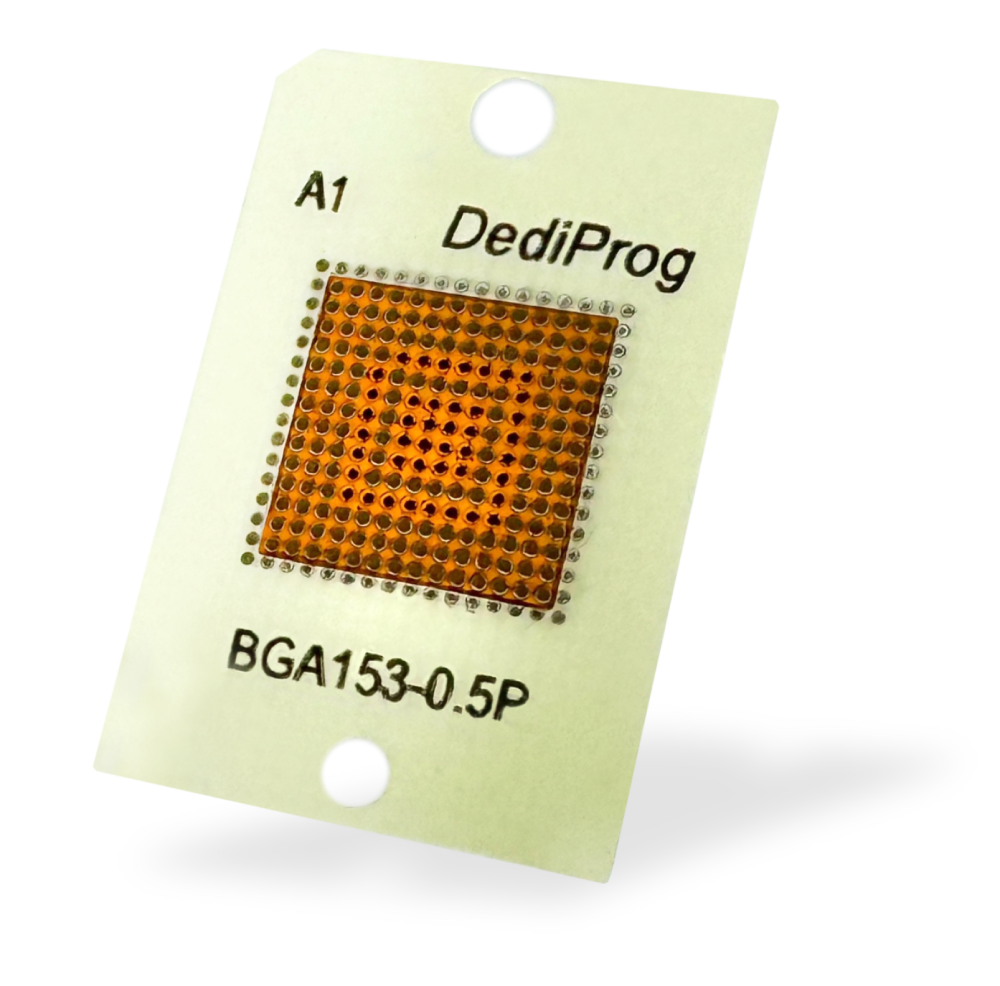

DediProg PCR

Function

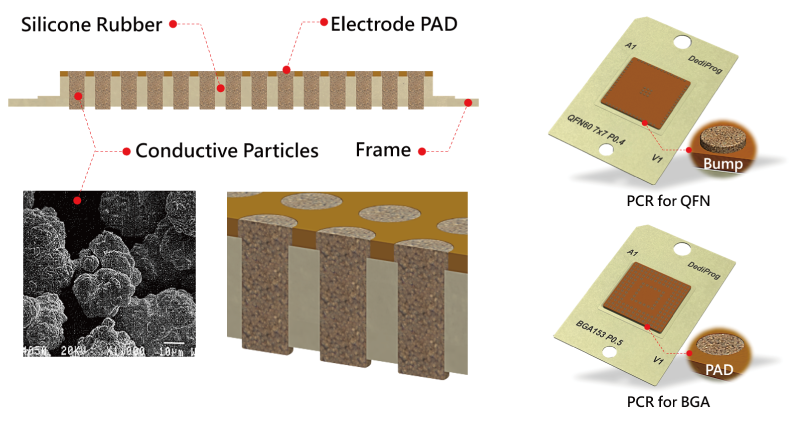

Pressure Conductive Silicone Rubber (PCR) is a common contact solution for IC package testing. It operates through a matrix of conductive particles uniformly dispersed within a silicone base. Under compression, these particles align to create a low-impedance path, establishing a stable electrical connection between the IC chip and the PCB without the need for soldering.

Characterized by low contact resistance, high current capacity, and a non-marring surface, PCR is an ideal choice for high-speed signal transmission and high-pin-count applications.



DediProg PCR | Rapid Customization × MIT Quality × IC Industry DNA

DediProg PCR Strengths




Mechanical Spec.

  1. Package Type: QFN、LGA、BGA
  2. Device Size : <13x13mm
  3. Device Pitch : > 0.30mm
  4. Recommended Travel: 0.15mm
  5. Full Travel: <0.30mm
  6. Contact  Force: 15g ~ 30g
  7. Operating Temperature: -55°C ~ 135°C
  8. Life cycle: > 100k Cycles



Materials Spec.

  1. Frame: FR4、SUS
  2. Powder: Au Alloy



Electrical Spec.

  1. Contact Resistance: 80mOhm (AVG)
  2. Current Rating: >2A Continuous

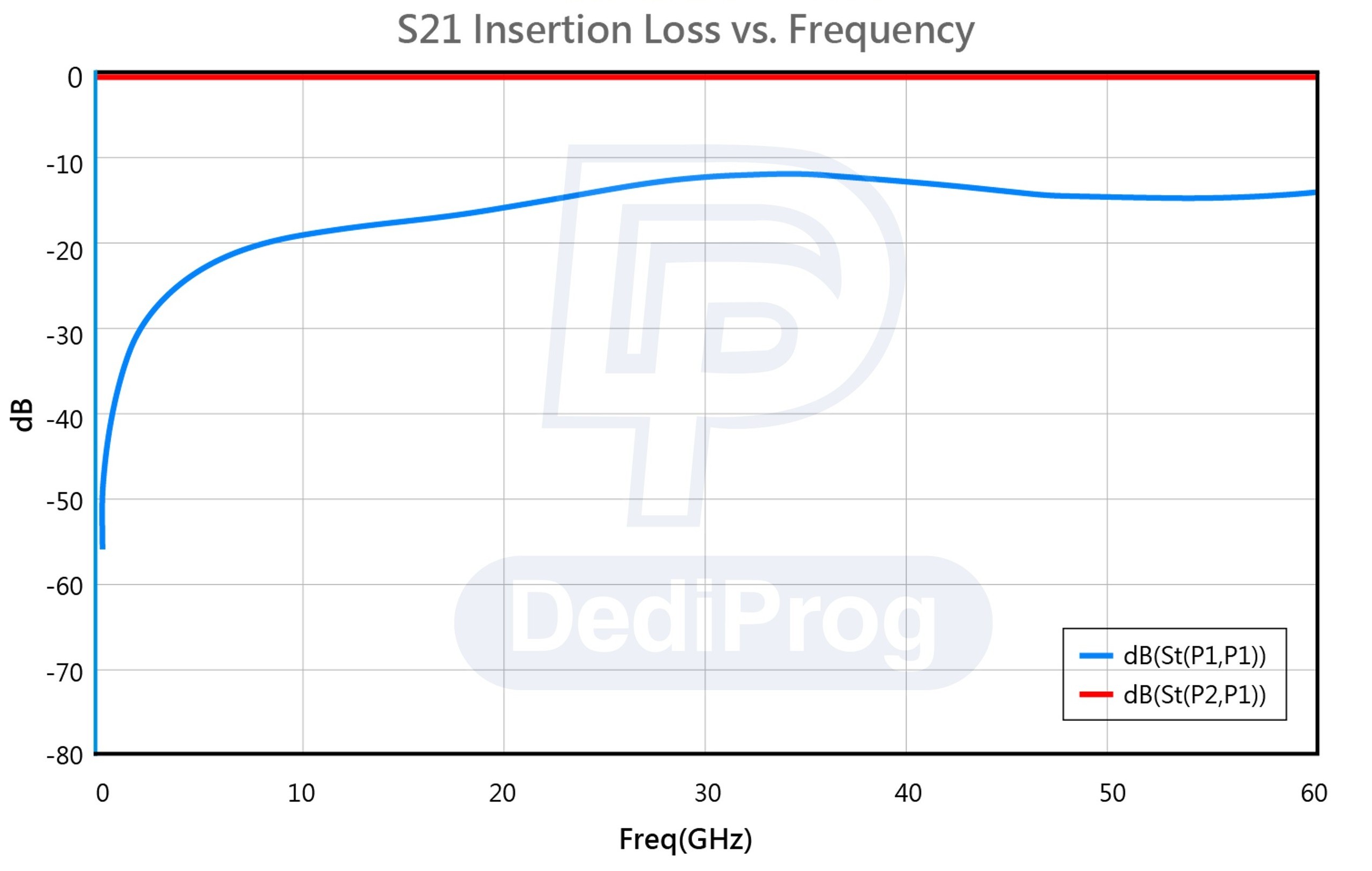

  3. Bandwidth: -1dB @60GHz (GSG)








Structure

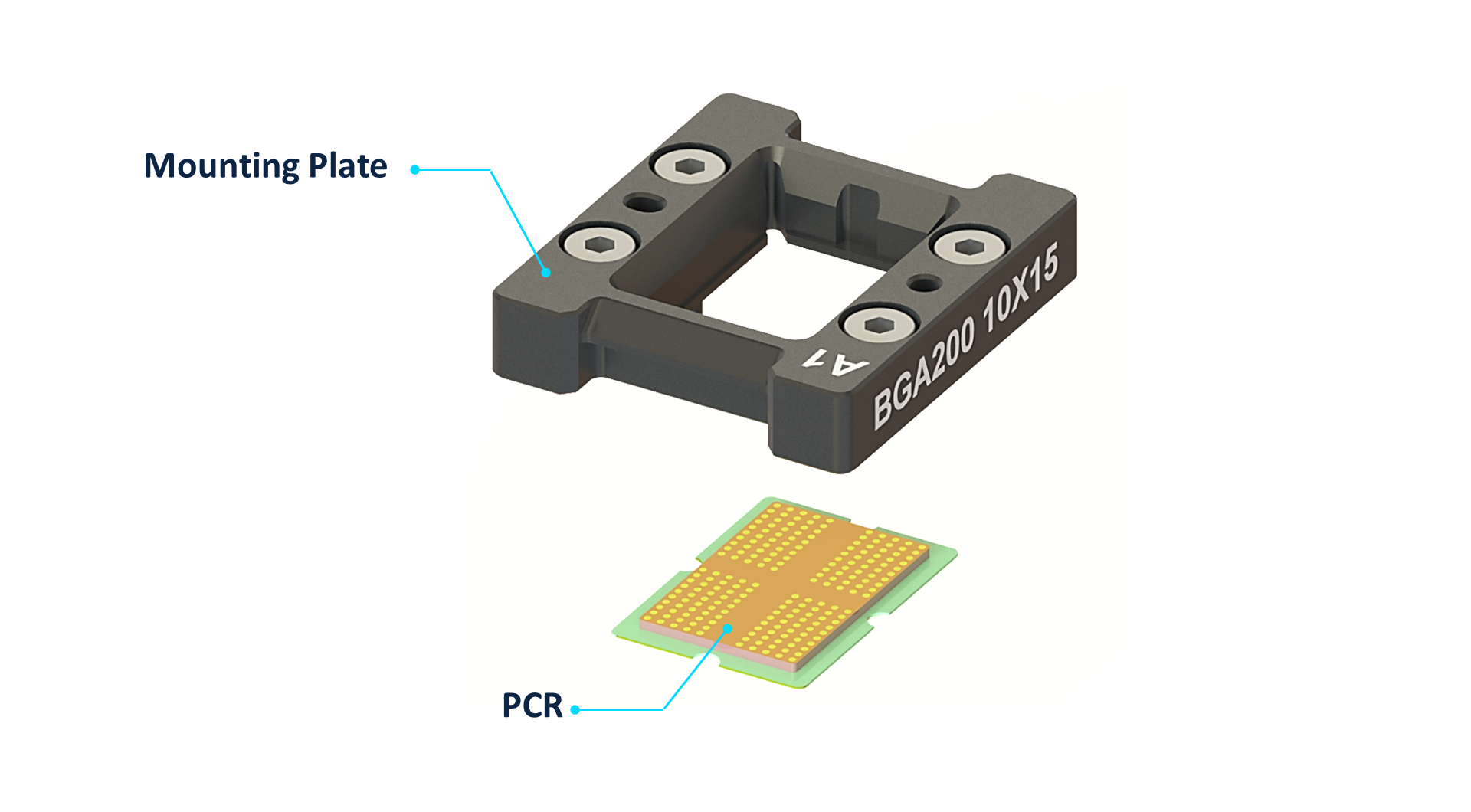

PCR on Socket

PCR Socket




Frequently Asked Questions (FAQ)


Q: What are the primary applications for PCR?
PCR is widely used for IC functional verification, System Level Test (SLT), programming validation, and R&D. For unique testing requirements, we provide tailored solutions to fit your specific needs—please contact us for more information.


Q: What is the available thickness range?
Standard thickness is 0.5–1.0mm. Custom thicknesses are available upon request.


Q: What is the maximum pin count supported?
Currently up to 5,000 pins. Support for higher pin-count ICs is expected to be released soon.


Are PCR dimensions customizable?
Yes. Both shape and size can be fully customized to your specific socket or PCB layout.


Q: Do you offer ESD protection PCR?
Yes, we provide ESD-safe (anti-static) PCR options.
