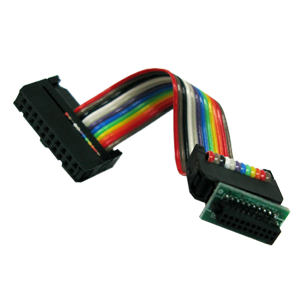

Intel ISP Adaptor-B2 (mated with SF600 Series)

Model Name : ISP-ADP-INTEL-B2
Intel ISP Adaptor-B2 (mated with SF600 Series)
USD$8

Description

The Intel ISP Adaptor B2 is used to connect SF600/SF600Plus/SF600Plus-G2 to Intel motherboard.

Mated with Intel 2x10 connector (Samtec: ASP-159358-03).

The cable length is around 8 cm; a header is added at the end.

※  This adaptor does not work with Quad IO. Please choose "ISP-ADP-intel-C2" for Quad IO.

Table 1: SF600/SF600Plus/SF600Plus-G2 ISP Header Pin Out (2x10)

1 Vpp CS2 2
3 CS1 VCC 4
5 MISO / DQ1 HOLD / DQ3 6
7 WP / DQ2 CLK 8
9 GND MOSI / DQ0 10
11 NC Reset / IO3 12
13 NC NC 14
15 NC NC 16
17 NC NC 18
19 GPIO1 GPIO2 20


Table 2: Intel ISP Adaptor B Pin Out (2x10)

1 KEY CS0 2
3 RESET CS1 4
5 GND VCC 6
7 CLK DQ2 / WP 8
9 DQ3/HOLD MISO 10
11 x MOSI 12
13 x x 14
15 x x 16
17 x x 18
19 x x 20





Table 3: Some signals have naming variations between SF600/SF600Plus/SF600Plus-G2 pin out and Intel Adaptor pin out.

The following is the matching table.

SF600/SF600Plus/SF600Plus-G2 Connector Intel Adaptor
Pin Signal Pin Signal
2 CS2 4 CS1
3 CS1 2 CS0
4 VCC 6 VCC
