BBF Testclip For Dual flash (SO8W 207mil)

Model Name : BBF-2TC-8
BBF Testclip For Dual flash (SO8W 207mil)
USD$ 70

Description

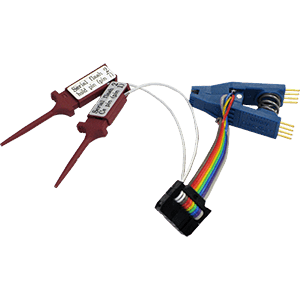

The BBF Dual SO8 Test Clip is used to connect the Dual Backup Boot Flash Tool to the Two Main Serial Flash soldered on board offering the possibility to the application controller to work on the Two Backup Flash automatically without any need of connectors.

  • One SO8 Test Clip to be connected on the First Serial Flash package.
  • Two individual Test Clips to be connected on the Chip select and Hold pin of the second Serial flash.
  • The BBF Dual SO8 Test Clip is frequently used in combination with the Dual Backup Boot Flash Tool to develop Bios code or repair Desktop and notebook using Serial Flash.
  • Compatible with most of the applications (no hardware modification needed).
  • Compatible with SO8N (150mils) and SO8W (200 mils) packages.
