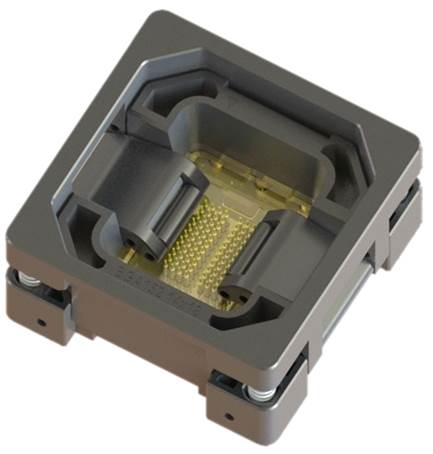

M3939 Open Top Socket

Model Name : M3939
M3939 is a module socket equipped with high-performance pogo pins.
This item is unavailable for online purchase.

M3939 Function

M3939 is a module socket equipped with high-performance pogo pins. It can achieve high stability and product life span in chip testing.

It supports multiple IC packages, including BGA, QFN, QFP, LGA, and SOT.



M3939 產品特色

◆ Outer Diameter : 39mm x 39mm
◆ IC Size Range : 7mm x 7mm ~ 16mm x 20mm
◆ Applicable PAD Pitch: 0.35mm~2.54mm
◆ Max. Pin Count: ~250 Pin
◆ Withstand voltage: AC 100V For 1 Minute
◆ Insulation Resistance: 1000MΩ
◆ Contact Resistance: 100mΩ (AVG)
◆ Operation Temperature: -55℃~150℃
◆ Insertion: 50,000 Cycle (Mechanical)
